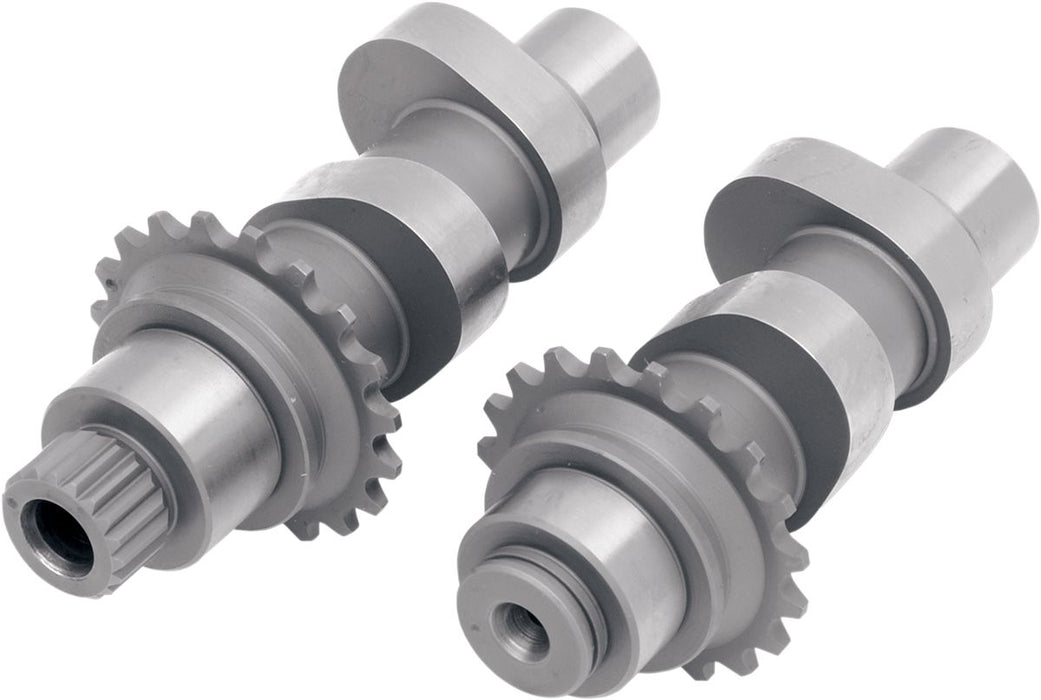

Chain Driven CamAllow you to upgrade your 99-06 Twin Cam (except 06 Dyna Glide) to the newer roller-style cam chains and replaces the spring tension cam chain adjusters with the later-style hydraulic adjusters for longer life
Cam grinds listed are designed to be used with stock lifters; they require the installation of a 07-17 cam plate, oil pump, cam sprockets and chains, and both hydraulic chain adjusters (these parts are not included and must be purchased separately)
A list of required components is supplied with each set of cams
Performance should be similar to earlier bikes with the same cam grinds
Made in the U.S.A.
99-06 Twin Cam motors (except 06 Dyna Glide) cannot use the 07-17 cams, as the bearing journal on the earlier motors is .875" in diameter and the 07-17 cams are 1.000" in diameter. The "N" series of cams feature the .875" bearing journal, yet still accept the new style cam support plate
99-01 model motors must use the Andrews rear cam sprocket Drag part #0925-0147. 2002-2006 models must use the stock rear cam sprocket, OEM #25728-06
Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearanceBolt-in cams with more torque at low and middle RPM range (1700-4800 RPM) Similar to EV23 for heavy bikes Ideal for heavy bikes with stock compression ratios and stock pistons Can be used with stock valve springs and tappets
Details
Exhaust Open Imperial : 40°Exhaust Lift : 0,498"
Exhaust Lift at TDC : 0,121"
Intake Duration : 255°
Intake Lobe Centreline Imperial : 100°
Exhaust Duration Imperial : 228°
Exhaust Lobe Centreline Imperial : 106°
Exhaust Lift at TDC Imperial : 0.121"
Exhaust Lobe Centreline : 106°
Intake Duration Imperial : 255°
Exhaust Close Imperial : 8°
Intake Lift Imperial : 0.498"
Grind : 21 Series
Exhaust Duration : 228°
Intake Lobe Centreline : 100°
Exhaust Close : 8°
Exhaust Lift Imperial : 0.498"
Intake Lift at TDC : 0,134"
Exhaust Open : 40°
Intake Close Imperial : 30°
Type : Chain
Intake Open Imperial : 10°
Application : Exhaust| Intake
Intake Close : 30°
Features : Can Be Used with Stock Springs and Tappets
Intake Lift at TDC Imperial : 0.134"
Intake Open : 10°
Intake Lift : 0,498"
Product Name : Cam Kit
Units : Pair
Fitment
Harley-Davidson FLHR 1450 Road King - 2008, 2009, 2010, 2011, 3367Harley-Davidson FLHR 1450 Road King - 2008, 2009, 2010, 2011, 3368
Harley-Davidson FLHRCI 1450 EFI Road King Classic - 2008, 2009, 2010, 2011, 3369
Harley-Davidson FLHRCI 1450 EFI Road King Classic - 2008, 2009, 2010, 2011, 3370
Harley-Davidson FLHRI 1450 EFI Road King - 2008, 2009, 2010, 2011, 3371
Harley-Davidson FLHRSEI 1550 Road King Screamin Eagle - 2008, 2009, 2010, 2011, 3372
Harley-Davidson FLHRSEI2 1690 Road King Screamin Eagle - 2008, 2009, 2010, 2011, 3373
Harley-Davidson FLHRSI 1450 EFI Road King Custom - 2008, 2009, 2010, 2011, 3374
Harley-Davidson FLHT 1450 Electra Glide - 2008, 2009, 2010, 2011, 3375
Harley-Davidson FLHT 1450 Electra Glide - 2008, 2009, 2010, 2011, 3376
Harley-Davidson FLHTC 1450 Electra Glide Classic - 2008, 2009, 2010, 2011, 3377
Harley-Davidson FLHTCI 1450 EFI Electra Glide Classic - 2008, 2009, 2010, 2011, 3378
Harley-Davidson FLHTCSE2 1690 EFI Electra Glide Screamin Eagle - 2008, 2009, 2010, 2011, 3379
Harley-Davidson FLHTCUI 1450 EFI Electra Glide Ultra Classic - 2008, 2009, 2010, 2011, 3380
Harley-Davidson FLHTCUI 1450 EFI Electra Glide Ultra Classic - 2008, 2009, 2010, 2011, 3381
Harley-Davidson FLHTCUSE 1690 Electra Glide Ultra Classic Screamin Eagle - 2008, 2009, 2010, 2011, 3382
Harley-Davidson FLHTI 1450 EFI Electra Glide - 2008, 2009, 2010, 2011, 3383
Harley-Davidson FLHXI 1450 EFI Street Glide - 2008, 2009, 2010, 2011, 3384
Harley-Davidson FLSTC 1450 Heritage Softail Classic - 2008, 2009, 2010, 2011, 3385
Harley-Davidson FLSTCI 1450 EFI Heritage Softail Classic - 2008, 2009, 2010, 2011, 3386
Harley-Davidson FLSTF 1450 Fat Boy - 2008, 2009, 2010, 2011, 3387
Harley-Davidson FLSTFI 1450 EFI Fat Boy - 2008, 2009, 2010, 2011, 3388
Harley-Davidson FLSTFI 1550 EFI Fat Boy 15th Anniversary - 2008, 2009, 2010, 2011, 3389
Harley-Davidson FLSTFSE 1690 Fat Boy Screamin Eagle - 2008, 2009, 2010, 2011, 3390
Harley-Davidson FLSTFSE2 1690 Fat Boy Screamin Eagle - 2008, 2009, 2010, 2011, 3391
Harley-Davidson FLSTI 1450 EFI Heritage Softail - 2008, 2009, 2010, 2011, 3392
Harley-Davidson FLSTNI 1450 EFI Softail Deluxe - 2008, 2009, 2010, 2011, 3393
Harley-Davidson FLSTS 1450 Heritage Softail Springer - 2008, 2009, 2010, 2011, 3394
Harley-Davidson FLSTSC 1450 Softail Springer Classic - 2008, 2009, 2010, 2011, 3395
Harley-Davidson FLSTSCI 1450 EFI Softail Springer Classic - 2008, 2009, 2010, 2011, 3396
Harley-Davidson FLTRSEI 1550 Road Glide Screamin Eagle - 2008, 2009, 2010, 2011, 3397
Harley-Davidson FXD 1450 Dyna Super Glide - 2008, 2009, 2010, 2011, 3398
Harley-Davidson FXD 1450 Dyna Super Glide - 2008, 2009, 2010, 2011, 3399
Harley-Davidson FXDCI 1450 EFI Dyna Super Glide Custom - 2008, 2009, 2010, 2011, 3400
Harley-Davidson FXDI 1450 EFI Dyna Super Glide - 2008, 2009, 2010, 2011, 3401
Harley-Davidson FXDL 1450 Dyna Low Rider - 2008, 2009, 2010, 2011, 3402
Harley-Davidson FXDL 1450 Dyna Low Rider - 2008, 2009, 2010, 2011, 3403
Harley-Davidson FXDLI 1450 EFI Dyna Low Rider - 2008, 2009, 2010, 2011, 3404
Harley-Davidson FXDWG 1450 Dyna Wide Glide - 2008, 2009, 2010, 2011, 3405
Harley-Davidson FXDWG 1450 Dyna Wide Glide - 2008, 2009, 2010, 2011, 3406
Harley-Davidson FXDWG2 1450 Dyna Wide Glide Limited Edition - 2008, 2009, 2010, 2011, 3407
Harley-Davidson FXDWG3 1450 Dyna Wide Glide Limited Edition - 2008, 2009, 2010, 2011, 3408
Harley-Davidson FXDWGI 1450 EFI Dyna Wide Glide - 2008, 2009, 2010, 2011, 3409
Harley-Davidson FXDX 1450 Dyna Super Glide Sport - 2008, 2009, 2010, 2011, 3410
Harley-Davidson FXDXI 1450 EFI Dyna Super Glide Sport - 2008, 2009, 2010, 2011, 3411
Harley-Davidson FXDXT 1450 Dyna Super Glide T-Sport - 2008, 2009, 2010, 2011, 3412
Harley-Davidson FXST 1450 Softail - 2008, 2009, 2010, 2011, 3413
Harley-Davidson FXSTB 1450 Softail Night Train - 2008, 2009, 2010, 2011, 3414
Harley-Davidson FXSTBI 1450 EFI Softail Night Train - 2008, 2009, 2010, 2011, 3415
Harley-Davidson FXSTD 1450 Softail Deuce - 2008, 2009, 2010, 2011, 3416
Harley-Davidson FXSTDI 1450 EFI Softail Deuce - 2008, 2009, 2010, 2011, 3417
Harley-Davidson FXSTI 1450 EFI Softail - 2008, 2009, 2010, 2011, 3418
Harley-Davidson FXSTS 1450 Softail Springer - 2008, 2009, 2010, 2011, 3419
Harley-Davidson FXSTSI 1450 EFI Softail Springer - 2008, 2009, 2010, 2011, 3420
