Andrews Gauge Pins #212105

Andrews Gauge Pins #212105

by Andrews
£26.33
SKU DS199105

Description

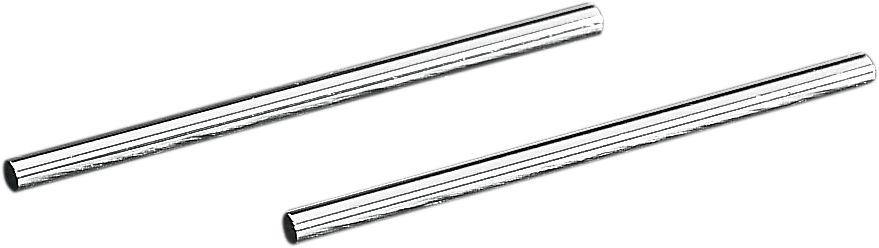

Gauge Pins
  • Used to measure the outside diameter of cam drive gears
  • Made in the U.S.A.
  • There are two basic differences between 90-99 cam gear sizes and earlier years. The overall range of gear pin measurements (from the largest gears to the smallest) was reduced in '90 from .006" to .003". The large gears are the same size for both 84-89 and 90-99 (green and black color codes). Gear size measurements (over pins) are listed in the 1990 H-D manual using .108" pins instead of .105" pins (as for earlier years). For the same gear, measurement over .108" pins will be approximately .012" larger than for .105" pins. For 92 engines, stock cam gears are interchangeable with earlier versions but gear outer diameters have been reduced by .025".

    • Details

    Measurement System : SAE
    Type : Gauge
    Material : Alloy Steel
    Application : Camshaft
    Product Name : Pin
    Colour/Finish : Silver
    Units : Pair

    Fitment

    Harley Davidson FLHR 1450 Road King - 2000, 2001, 2002, 2003
    Harley Davidson FLHR 1450 Road King - 1999
    Harley Davidson FLHRCI 1450 EFI Road King Classic - 2000, 2001, 2002, 2003, 2004, 2005, 2006
    Harley Davidson FLHRCI 1450 EFI Road King Classic - 1999
    Harley Davidson FLHRI 1450 EFI Road King - 2001, 2002, 2003, 2004, 2005, 2006
    Harley Davidson FLHRSEI 1550 Road King Screamin Eagle - 2002
    Harley Davidson FLHRSEI2 1690 Road King Screamin Eagle - 2003
    Harley Davidson FLHRSI 1450 EFI Road King Custom - 2004, 2005, 2006
    Harley Davidson FLHT 1450 Electra Glide - 2000, 2001, 2002, 2003
    Harley Davidson FLHT 1450 Electra Glide - 1999
    Harley Davidson FLHTC 1450 Electra Glide Classic - 2002, 2003, 2004
    Harley Davidson FLHTCI 1450 EFI Electra Glide Classic - 2004
    Harley Davidson FLHTCSE 1690 EFI Electra Glide Screamin Eagle - 2004
    Harley Davidson FLHTCSE2 1690 EFI Electra Glide Screamin Eagle - 2005
    Harley Davidson FLHTCUI 1450 EFI Electra Glide Ultra Classic - 2001, 2002, 2003, 2004, 2005, 2006
    Harley Davidson FLHTCUI 1450 EFI Electra Glide Ultra Classic - 1999, 2000
    Harley Davidson FLHTCUSE 1690 Electra Glide Ultra Classic Screamin Eagle - 2006
    Harley Davidson FLHTI 1450 EFI Electra Glide - 2004, 2005, 2006
    Harley Davidson FLHXI 1450 EFI Street Glide - 2006
    Harley Davidson FLSTC 1450 Heritage Softail Classic - 2000, 2001, 2002, 2003
    Harley Davidson FLSTCI 1450 EFI Heritage Softail Classic - 2001, 2002, 2003, 2004, 2005, 2006
    Harley Davidson FLSTF 1450 Fat Boy - 2000, 2001, 2002, 2003
    Harley Davidson FLSTFI 1450 EFI Fat Boy - 2001, 2002, 2003, 2004, 2005, 2006
    Harley Davidson FLSTFI 1550 EFI Fat Boy 15th Anniversary - 2005
    Harley Davidson FLSTFSE 1690 Fat Boy Screamin Eagle - 2005
    Harley Davidson FLSTFSE2 1690 Fat Boy Screamin Eagle - 2006
    Harley Davidson FLSTI 1450 EFI Heritage Softail - 2006
    Harley Davidson FLSTNI 1450 EFI Softail Deluxe - 2005, 2006
    Harley Davidson FLSTS 1450 Heritage Softail Springer - 2000, 2001, 2002, 2003
    Harley Davidson FLSTSC 1450 Softail Springer Classic - 2006
    Harley Davidson FLSTSCI 1450 EFI Softail Springer Classic - 2005, 2006
    Harley Davidson FLTRSEI 1550 Road Glide Screamin Eagle - 2000
    Harley Davidson FXD 1450 Dyna Super Glide - 2000, 2001, 2002, 2003
    Harley Davidson FXD 1450 Dyna Super Glide - 1999
    Harley Davidson FXDCI 1450 EFI Dyna Super Glide Custom - 2005
    Harley Davidson FXDI 1450 EFI Dyna Super Glide - 2004
    Harley Davidson FXDL 1450 Dyna Low Rider - 2000, 2001, 2002, 2003, 2004, 2005
    Harley Davidson FXDL 1450 Dyna Low Rider - 1999
    Harley Davidson FXDLI 1450 EFI Dyna Low Rider - 2004, 2005
    Harley Davidson FXDWG 1450 Dyna Wide Glide - 2000, 2001, 2002, 2003
    Harley Davidson FXDWG 1450 Dyna Wide Glide - 1999
    Harley Davidson FXDWG2 1450 Dyna Wide Glide Limited Edition - 2001
    Harley Davidson FXDWG3 1450 Dyna Wide Glide Limited Edition - 2002
    Harley Davidson FXDWGI 1450 EFI Dyna Wide Glide - 2004, 2005
    Harley Davidson FXDX 1450 Dyna Super Glide Sport - 1999, 2000, 2001, 2002, 2003
    Harley Davidson FXDXI 1450 EFI Dyna Super Glide Sport - 2004, 2005
    Harley Davidson FXDXT 1450 Dyna Super Glide T-Sport - 2001, 2002, 2003
    Harley Davidson FXST 1450 Softail - 2000, 2001, 2002, 2003
    Harley Davidson FXSTB 1450 Softail Night Train - 2000, 2001, 2002, 2003
    Harley Davidson FXSTBI 1450 EFI Softail Night Train - 2004, 2005, 2006
    Harley Davidson FXSTD 1450 Softail Deuce - 2000, 2001, 2002, 2003
    Harley Davidson FXSTDI 1450 EFI Softail Deuce - 2001, 2002, 2003, 2004, 2005
    Harley Davidson FXSTI 1450 EFI Softail - 2004, 2005, 2006
    Harley Davidson FXSTS 1450 Softail Springer - 2000, 2001, 2002, 2003
    Harley Davidson FXSTSI 1450 EFI Softail Springer - 2004, 2005, 2006
