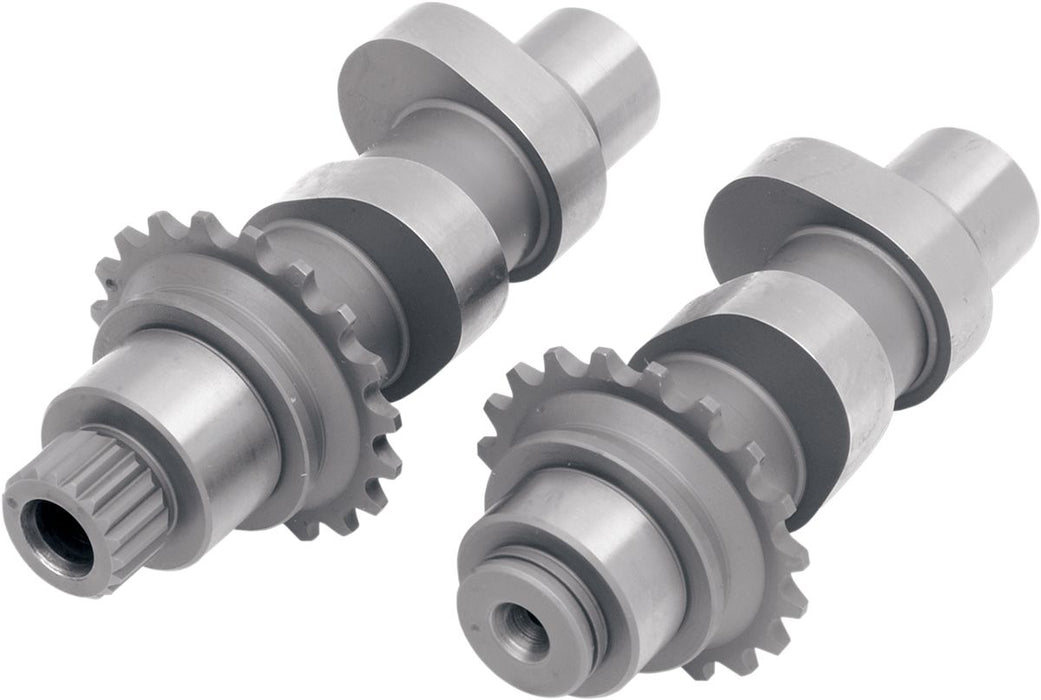

Andrews Grind Cam #216350

Description

Grind Cam
Cams work well with fuel injection or carburettor models
Run best with low restriction exhausts (1700-5200 rpm)
Works well with carbs or fuel injection
Bolt-in cam for more torque with stock compression
Can be used with stock valve springs and tappets
Similar to the EV-23 cam
All Andrews gear-driven cams require four-gear set for installation (DS-199532 for 99-06 applications; 0925-0166 or 0925-0152 for 07-17 Twin Cam and 06 Dyna applications).
Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
59G, 60G and 64G cams are for highly tuned engines and require the knowledge of an expert engine builder for proper setup and installation.Designed for 95"+ motors with 9.25:1 compression to 9.50:1 compression ratio and stock heads For lighter bikes Cam works best at higher RPM of 2500-6000 Can be used with stock valve springs and tappets

Details

Exhaust Lobe Centreline Imperial : 108°
Application : Exhaust| Intake
Exhaust Lift : 0,510"
Exhaust Close Imperial : 18°
Exhaust Lift at TDC Imperial : 0.168"
Grind : 50 Series
Intake Duration Imperial : 248°
Intake Open Imperial : 20°
Exhaust Open : 54°
Intake Lift : 0,510"
Intake Lift at TDC : 0,184"
Intake Open : 20°
Intake Lift at TDC Imperial : 0.184"
Intake Lobe Centreline : 104°
Exhaust Duration : 252°
Intake Close Imperial : 48°
Intake Lobe Centreline Imperial : 104°
Type : Chain
Product Name : Cam Kit
Exhaust Lift at TDC : 0,168"
Intake Duration : 248°
Intake Lift Imperial : 0.510"
Units : Pair
Exhaust Duration Imperial : 252°
Exhaust Close : 18°
Exhaust Open Imperial : 54°
Intake Close : 48°
Exhaust Lift Imperial : 0.510"
Exhaust Lobe Centreline : 108°

Fitment

Harley-Davidson FLD 1690 Dyna Switchback - 2008, 2009, 2010, 2011, 2842
Harley-Davidson FLD 1690 ABS Dyna Switchback - 2008, 2009, 2010, 2011, 2843
Harley-Davidson FLHR 1584 Road King - 2008, 2009, 2010, 2011, 2844
Harley-Davidson FLHR 1584 Road King - 2008, 2009, 2010, 2011, 2845
Harley-Davidson FLHR 1584 ABS Road King - 2008, 2009, 2010, 2011, 2846
Harley-Davidson FLHR 1690 ABS Road King - 2008, 2009, 2010, 2011, 2847
Harley-Davidson FLHR 1690 ABS Road King 110th Anniversary - 2008, 2009, 2010, 2011, 2848
Harley-Davidson FLHRC 1584 Road King Classic - 2008, 2009, 2010, 2011, 2849
Harley-Davidson FLHRC 1584 Road King Classic - 2008, 2009, 2010, 2011, 2850
Harley-Davidson FLHRC 1584 ABS Road King Classic - 2008, 2009, 2010, 2011, 2851
Harley-Davidson FLHRC 1690 ABS Road King Classic - 2008, 2009, 2010, 2011, 2852
Harley-Davidson FLHRC 1690 ABS Road King Classic - 2008, 2009, 2010, 2011, 2853
Harley-Davidson FLHRS 1584 Road King Custom - 2008, 2009, 2010, 2011, 2854
Harley-Davidson FLHRSE3 1800 Road King Screamin Eagle - 2008, 2009, 2010, 2011, 2855
Harley-Davidson FLHRSE4 1800 ABS Road King Screamin Eagle - 2008, 2009, 2010, 2011, 2856
Harley-Davidson FLHRSE5 1800 ABS Road King CVO - 2008, 2009, 2010, 2011, 2857
Harley-Davidson FLHRSE5 1800 ABS Road King CVO 110th Anniversary - 2008, 2009, 2010, 2011, 2858
Harley-Davidson FLHRSE6 1800 ABS Road King CVO - 2008, 2009, 2010, 2011, 2859
Harley-Davidson FLHT 1584 Electra Glide - 2008, 2009, 2010, 2011, 2860
Harley-Davidson FLHT 1584 Electra Glide - 2008, 2009, 2010, 2011, 2861
Harley-Davidson FLHT 1584 ABS Electra Glide - 2008, 2009, 2010, 2011, 2862
Harley-Davidson FLHTC 1690 ABS Electra Glide Classic - 2008, 2009, 2010, 2011, 2863
Harley-Davidson FLHTC 1690 ABS Electra Glide Classic - 2008, 2009, 2010, 2011, 2864
Harley-Davidson FLHTCU 1584 Electra Glide Ultra Classic - 2008, 2009, 2010, 2011, 2865
Harley-Davidson FLHTCU 1584 Electra Glide Ultra Classic - 2008, 2009, 2010, 2011, 2866
Harley-Davidson FLHTCU 1584 ABS Electra Glide Ultra Classic - 2008, 2009, 2010, 2011, 2867
Harley-Davidson FLHTCU 1690 Electra Glide Ultra Classic - 2008, 2009, 2010, 2011, 2868
Harley-Davidson FLHTCU 1690 ABS Electra Glide Ultra Classic - 2008, 2009, 2010, 2011, 2869
Harley-Davidson FLHTCU 1690 ABS Electra Glide Ultra Classic - 2008, 2009, 2010, 2011, 2870
Harley-Davidson FLHTCUSE2 1800 Electra Glide Ultra Classic Screamin Eagle - 2008, 2009, 2010, 2011, 2871
Harley-Davidson FLHTCUSE3 1800 ABS Electra Glide Ultra Classic Screamin Eagle - 2008, 2009, 2010, 2011, 2872
Harley-Davidson FLHTCUSE4 1800 ABS Electra Glide Ultra Classic CVO - 2008, 2009, 2010, 2011, 2873
Harley-Davidson FLHTCUSE5 1800 ABS Electra Glide Ultra Classic CVO - 2008, 2009, 2010, 2011, 2874
Harley-Davidson FLHTCUSE6 1800 ABS Electra Glide Ultra Classic CVO - 2008, 2009, 2010, 2011, 2875
Harley-Davidson FLHTCUSE7 1800 ABS Electra Glide Ultra Classic CVO - 2008, 2009, 2010, 2011, 2876
Harley-Davidson FLHTCUSE8 1800 ABS Electra Glide Ultra Classic CVO - 2008, 2009, 2010, 2011, 2877
Harley-Davidson FLHTCUSE8 1800 ABS Electra Glide Ultra Classic CVO 110th Anniversary - 2008, 2009, 2010, 2011, 2878
Harley-Davidson FLHTCUTG 1690 Trike Tri Glide Ultra Classic - 2008, 2009, 2010, 2011, 2879
Harley-Davidson FLHTK 1584 ABS Electra Glide Ultra Limited - 2008, 2009, 2010, 2011, 2880
Harley-Davidson FLHTK 1690 ABS Electra Glide Ultra Limited - 2008, 2009, 2010, 2011, 2881
Harley-Davidson FLHTK 1690 ABS Electra Glide Ultra Limited - 2008, 2009, 2010, 2011, 2882
Harley-Davidson FLHTK 1690 ABS Electra Glide Ultra Limited 110th Anniversary - 2008, 2009, 2010, 2011, 2883
Harley-Davidson FLHTKL 1690 ABS Electra Glide Ultra Limited Low - 2008, 2009, 2010, 2011, 2884
Harley-Davidson FLHTKSE 1800 ABS Electra Glide Ultra Limited CVO - 2008, 2009, 2010, 2011, 2885
Harley-Davidson FLHX 1584 Street Glide - 2008, 2009, 2010, 2011, 2886
Harley-Davidson FLHX 1584 Street Glide - 2008, 2009, 2010, 2011, 2887
Harley-Davidson FLHX 1584 ABS Street Glide - 2008, 2009, 2010, 2011, 2888
Harley-Davidson FLHX 1690 Street Glide - 2008, 2009, 2010, 2011, 2889
Harley-Davidson FLHX 1690 Street Glide - 2008, 2009, 2010, 2011, 2890
Harley-Davidson FLHX 1690 ABS Street Glide - 2008, 2009, 2010, 2011, 2891
Harley-Davidson FLHX 1690 ABS Street Glide - 2008, 2009, 2010, 2011, 2892
Harley-Davidson FLHXS 1690 ABS Street Glide Special - 2008, 2009, 2010, 2011, 2893
Harley-Davidson FLHXSE 1800 ABS Street Glide CVO - 2008, 2009, 2010, 2011, 2894
Harley-Davidson FLHXSE 1800 ABS Street Glide CVO - 2008, 2009, 2010, 2011, 2895
Harley-Davidson FLHXSE2 1800 ABS Street Glide CVO - 2008, 2009, 2010, 2011, 2896
Harley-Davidson FLHXSE3 1800 ABS Street Glide CVO - 2008, 2009, 2010, 2011, 2897
Harley-Davidson FLS 1690 Softail Slim - 2008, 2009, 2010, 2011, 2898
Harley-Davidson FLS 1690 ABS Softail Slim - 2008, 2009, 2010, 2011, 2899
Harley-Davidson FLS 1690 ABS Softail Slim - 2008, 2009, 2010, 2011, 2900
Harley-Davidson FLSS 1800 ABS Softail Slim S - 2008, 2009, 2010, 2011, 2901
Harley-Davidson FLSTC 1584 Heritage Softail Classic - 2008, 2009, 2010, 2011, 2902
Harley-Davidson FLSTC 1584 ABS Heritage Softail Classic - 2008, 2009, 2010, 2011, 2903
Harley-Davidson FLSTC 1690 Heritage Softail Classic - 2008, 2009, 2010, 2011, 2904
Harley-Davidson FLSTC 1690 ABS Heritage Softail Classic - 2008, 2009, 2010, 2011, 2905
Harley-Davidson FLSTC 1690 ABS Heritage Softail Classic - 2008, 2009, 2010, 2011, 2906
Harley-Davidson FLSTC 1690 ABS Heritage Softail Classic 110th Anniversary - 2008, 2009, 2010, 2011, 2907
Harley-Davidson FLSTF 1584 Fat Boy - 2008, 2009, 2010, 2011, 2908
Harley-Davidson FLSTF 1584 ABS Fat Boy - 2008, 2009, 2010, 2011, 2909
Harley-Davidson FLSTF 1690 Fat Boy - 2008, 2009, 2010, 2011, 2910
Harley-Davidson FLSTF 1690 ABS Fat Boy - 2008, 2009, 2010, 2011, 2911
Harley-Davidson FLSTF 1690 ABS Fat Boy - 2008, 2009, 2010, 2011, 2912
Harley-Davidson FLSTFB 1584 Fat Boy Special - 2008, 2009, 2010, 2011, 2913
Harley-Davidson FLSTFB 1584 ABS Fat Boy Special - 2008, 2009, 2010, 2011, 2914
Harley-Davidson FLSTFB 1690 ABS Fat Boy Special - 2008, 2009, 2010, 2011, 2915
Harley-Davidson FLSTFB 1690 ABS Fat Boy Special - 2008, 2009, 2010, 2011, 2916
Harley-Davidson FLSTFB 1690 ABS Fat Boy Special 110th Anniversary - 2008, 2009, 2010, 2011, 2917
Harley-Davidson FLSTFBS 1800 ABS Fat Boy S - 2008, 2009, 2010, 2011, 2918
Harley-Davidson FLSTFBS 1800 ABS Fat Boy S - 2008, 2009, 2010, 2011, 2919
Harley-Davidson FLSTN 1584 Softail Deluxe - 2008, 2009, 2010, 2011, 2920
Harley-Davidson FLSTN 1584 ABS Softail Deluxe - 2008, 2009, 2010, 2011, 2921
Harley-Davidson FLSTN 1690 Softail Deluxe - 2008, 2009, 2010, 2011, 2922
Harley-Davidson FLSTN 1690 ABS Softail Deluxe - 2008, 2009, 2010, 2011, 2923
Harley-Davidson FLSTN 1690 ABS Softail Deluxe - 2008, 2009, 2010, 2011, 2924
Harley-Davidson FLSTNSE 1800 ABS Softail Deluxe CVO - 2008, 2009, 2010, 2011, 2925
Harley-Davidson FLSTSB 1584 Cross Bones - 2008, 2009, 2010, 2011, 2926
Harley-Davidson FLSTSB 1584 Cross Bones - 2008, 2009, 2010, 2011, 2927
Harley-Davidson FLSTSC 1584 Softail Springer Classic - 2008, 2009, 2010, 2011, 2928
Harley-Davidson FLSTSE 1800 Softail Convertible CVO - 2008, 2009, 2010, 2011, 2929
Harley-Davidson FLSTSE2 1800 ABS Softail Convertible CVO - 2008, 2009, 2010, 2011, 2930
Harley-Davidson FLSTSE3 1800 ABS Softail Convertible CVO - 2008, 2009, 2010, 2011, 2931
Harley-Davidson FLTRSE3 1800 ABS Road Glide CVO - 2008, 2009, 2010, 2011, 2932
Harley-Davidson FLTRU 1690 ABS Road Glide Ultra - 2008, 2009, 2010, 2011, 2933
Harley-Davidson FLTRUSE 1800 ABS Road Glide Ultra CVO - 2008, 2009, 2010, 2011, 2934
Harley-Davidson FLTRUSE2 1800 ABS Road Glide Ultra CVO - 2008, 2009, 2010, 2011, 2935
Harley-Davidson FLTRXS 1690 A Road Glide Special - 2008, 2009, 2010, 2011, 2936
Harley-Davidson FLTRXSE 1800 ABS Road Glide Custom CVO - 2008, 2009, 2010, 2011, 2937
Harley-Davidson FLTRXSE2 1800 ABS Road Glide Custom CVO - 2008, 2009, 2010, 2011, 2938
Harley-Davidson FLTRXSE2 1800 ABS Road Glide Custom CVO 110th Anniversary - 2008, 2009, 2010, 2011, 2939
Harley-Davidson FXCW 1584 Rocker - 2008, 2009, 2010, 2011, 2940
Harley-Davidson FXCWC 1584 Rocker C - 2008, 2009, 2010, 2011, 2941
Harley-Davidson FXCWC 1584 ABS Rocker C - 2008, 2009, 2010, 2011, 2942
Harley-Davidson FXDB 1584 Dyna Street Bob - 2008, 2009, 2010, 2011, 2943
Harley-Davidson FXDB 1584 ABS Dyna Street Bob - 2008, 2009, 2010, 2011, 2944
Harley-Davidson FXDB 1690 Dyna Street Bob - 2008, 2009, 2010, 2011, 2945
Harley-Davidson FXDB 1690 ABS Dyna Street Bob - 2008, 2009, 2010, 2011, 2946
Harley-Davidson FXDB 1690 ABS Dyna Street Bob - 2008, 2009, 2010, 2011, 2947
Harley-Davidson FXDBA 1584 Dyna Street Bob Limited - 2008, 2009, 2010, 2011, 2948
Harley-Davidson FXDBA 1584 ABS Dyna Street Bob Limited - 2008, 2009, 2010, 2011, 2949
Harley-Davidson FXDBA 1690 Dyna Street Bob Limited - 2008, 2009, 2010, 2011, 2950
Harley-Davidson FXDBA 1690 ABS Dyna Street Bob Limited - 2008, 2009, 2010, 2011, 2951
Harley-Davidson FXDBB 1690 Dyna Street Bob Special - 2008, 2009, 2010, 2011, 2952
Harley-Davidson FXDBB 1690 A Dyna Street Bob Special - 2008, 2009, 2010, 2011, 2953
Harley-Davidson FXDBC 1690 Dyna Street Bob Limited - 2008, 2009, 2010, 2011, 2954
Harley-Davidson FXDBC 1690 A Dyna Street Bob Limited - 2008, 2009, 2010, 2011, 2955
Harley-Davidson FXDBI 1450 EFI Dyna Street Bob - 2008, 2009, 2010, 2011, 2956
Harley-Davidson FXDBP 1690 Dyna Street Bob Factory Custom - 2008, 2009, 2010, 2011, 2957
Harley-Davidson FXDBP 1690 ABS Dyna Street Bob Factory Custom - 2008, 2009, 2010, 2011, 2958
Harley-Davidson FXDC 1584 Dyna Super Glide Custom - 2008, 2009, 2010, 2011, 2959
Harley-Davidson FXDC 1584 ABS Dyna Super Glide Custom - 2008, 2009, 2010, 2011, 2960
Harley-Davidson FXDC 1584 ABS Dyna Super Glide Custom 110th Anniversary - 2008, 2009, 2010, 2011, 2961
Harley-Davidson FXDC 1690 ABS Dyna Super Glide Custom - 2008, 2009, 2010, 2011, 2962
Harley-Davidson FXDCI 1450 EFI Dyna Super Glide Custom - 2008, 2009, 2010, 2011, 2963
Harley-Davidson FXDF 1584 Dyna Fat Bob - 2008, 2009, 2010, 2011, 2964
Harley-Davidson FXDF 1584 ABS Dyna Fat Bob - 2008, 2009, 2010, 2011, 2965
Harley-Davidson FXDF 1690 Dyna Fat Bob - 2008, 2009, 2010, 2011, 2966
Harley-Davidson FXDF 1690 ABS Dyna Fat Bob - 2008, 2009, 2010, 2011, 2967
Harley-Davidson FXDF 1690 ABS Dyna Fat Bob - 2008, 2009, 2010, 2011, 2968
Harley-Davidson FXDFSE 1800 Dyna Fat Bob CVO - 2008, 2009, 2010, 2011, 2969
Harley-Davidson FXDFSE2 1800 Dyna Fat Bob CVO - 2008, 2009, 2010, 2011, 2970
Harley-Davidson FXDI35 1450 EFI Dyna Super Glide 35th Anniversary - 2008, 2009, 2010, 2011, 2971
Harley-Davidson FXDL 1584 Dyna Low Rider - 2008, 2009, 2010, 2011, 2972
Harley-Davidson FXDL 1690 Dyna Low Rider - 2008, 2009, 2010, 2011, 2973
Harley-Davidson FXDL 1690 ABS Dyna Low Rider - 2008, 2009, 2010, 2011, 2974
Harley-Davidson FXDL 1690 ABS Dyna Low Rider - 2008, 2009, 2010, 2011, 2975
Harley-Davidson FXDLI 1450 EFI Dyna Low Rider - 2008, 2009, 2010, 2011, 2976
Harley-Davidson FXDLS 1800 ABS Dyna Low Rider S - 2008, 2009, 2010, 2011, 2977
Harley-Davidson FXDSE 1800 Dyna Screamin Eagle - 2008, 2009, 2010, 2011, 2978
Harley-Davidson FXDSE2 1800 Dyna Screamin Eagle - 2008, 2009, 2010, 2011, 2979
Harley-Davidson FXDWG 1584 Dyna Wide Glide - 2008, 2009, 2010, 2011, 2980
Harley-Davidson FXDWG 1584 ABS Dyna Wide Glide - 2008, 2009, 2010, 2011, 2981
Harley-Davidson FXDWG 1690 ABS Dyna Wide Glide - 2008, 2009, 2010, 2011, 2982
Harley-Davidson FXDWG 1690 ABS Dyna Wide Glide - 2008, 2009, 2010, 2011, 2983
Harley-Davidson FXDWGI 1450 EFI Dyna Wide Glide - 2008, 2009, 2010, 2011, 2984
Harley-Davidson FXS 1584 ABS Blackline - 2008, 2009, 2010, 2011, 2985
Harley-Davidson FXS 1584 ABS Blackline - 2008, 2009, 2010, 2011, 2986
Harley-Davidson FXS 1690 ABS Blackline - 2008, 2009, 2010, 2011, 2987
Harley-Davidson FXSB 1690 Breakout - 2008, 2009, 2010, 2011, 2988
Harley-Davidson FXSB 1690 ABS Breakout - 2008, 2009, 2010, 2011, 2989
Harley-Davidson FXSB 1690 ABS Breakout - 2008, 2009, 2010, 2011, 2990
Harley-Davidson FXSBSE 1800 ABS Breakout CVO - 2008, 2009, 2010, 2011, 2991
Harley-Davidson FXSBSE2 1800 ABS Breakout CVO - 2008, 2009, 2010, 2011, 2992
Harley-Davidson FXSE 1800 ABS Pro Street Breakout CVO - 2008, 2009, 2010, 2011, 2993
Harley-Davidson FXSTB 1584 Softail Night Train - 2008, 2009, 2010, 2011, 2994
Harley-Davidson FXSTC 1584 Softail Custom - 2008, 2009, 2010, 2011, 2995
Harley-Davidson FXSTSSE 1800 Softail Springer Screamin Eagle - 2008, 2009, 2010, 2011, 2996
Harley-Davidson FXSTSSE2 1800 Softail Springer Screamin Eagle - 2008, 2009, 2010, 2011, 2997
Harley-Davidson FXSTSSE3 1800 Softail Springer CVO - 2008, 2009, 2010, 2011, 2998
