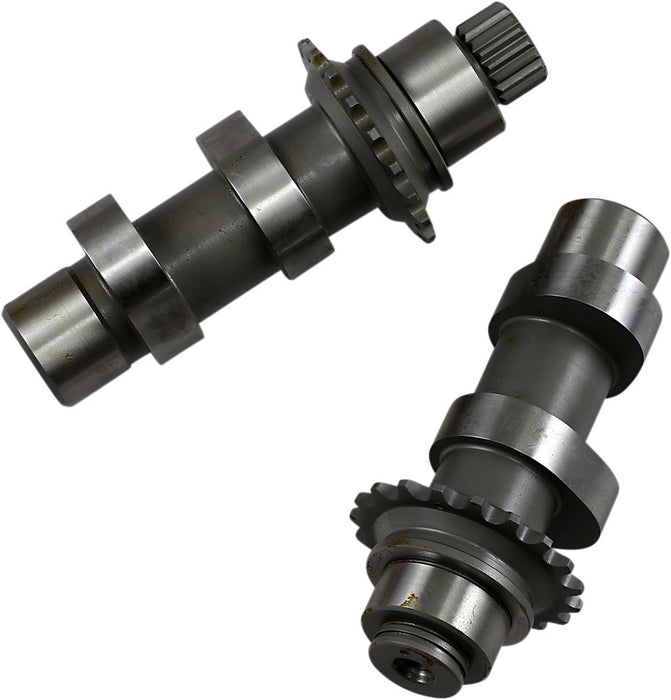

Andrews Grind Cam #216360

Description

Grind Cam
Cams work well with fuel injection or carburettor models
Run best with low restriction exhausts (1700-5200 rpm)
Works well with carbs or fuel injection
Bolt-in cam for more torque with stock compression
Can be used with stock valve springs and tappets
Similar to the EV-23 cam
All Andrews gear-driven cams require four-gear set for installation (DS-199532 for 99-06 applications; 0925-0166 or 0925-0152 for 07-17 Twin Cam and 06 Dyna applications).
Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
59G, 60G and 64G cams are for highly tuned engines and require the knowledge of an expert engine builder for proper setup and installation.Designed for 95"+ motors with major head work Maximum torque and HP at middle and upper RPM ranges (2700-6500+ RPM) Coil bind and valve-to-valve and valve-to-piston clearance must be checked

Details

Product Name : Cam Kit
Units : Pair
Intake Duration Imperial : 260°
Intake Lift at TDC : 0,205"
Grind : 60 Series
Intake Lift : 0,560"
Exhaust Lift at TDC Imperial : 0.192"
Intake Lobe Centreline Imperial : 106°
Exhaust Lift Imperial : 0.560"
Exhaust Open : 58°
Intake Lift Imperial : 0.560"
Exhaust Duration : 260°
Exhaust Close Imperial : 22°
Exhaust Lift at TDC : 0,192"
Intake Open Imperial : 24°
Exhaust Open Imperial : 58°
Exhaust Close : 22°
Intake Close : 56°
Intake Close Imperial : 56°
Exhaust Lift : 0,560"
Intake Duration : 260°
Type : Chain
Exhaust Lobe Centreline Imperial : 108°
Intake Lobe Centreline : 106°
Exhaust Lobe Centreline : 108°
Intake Open : 24°
Exhaust Duration Imperial : 260°
Intake Lift at TDC Imperial : 0.205"
Application : Exhaust| Intake

Fitment

Harley-Davidson FLD 1690 Dyna Switchback - 2008, 2009, 2010, 2011, 3156
Harley-Davidson FLD 1690 ABS Dyna Switchback - 2008, 2009, 2010, 2011, 3157
Harley-Davidson FLHR 1584 Road King - 2008, 2009, 2010, 2011, 3158
Harley-Davidson FLHR 1584 Road King - 2008, 2009, 2010, 2011, 3159
Harley-Davidson FLHR 1584 ABS Road King - 2008, 2009, 2010, 2011, 3160
Harley-Davidson FLHR 1690 ABS Road King - 2008, 2009, 2010, 2011, 3161
Harley-Davidson FLHR 1690 ABS Road King 110th Anniversary - 2008, 2009, 2010, 2011, 3162
Harley-Davidson FLHRC 1584 Road King Classic - 2008, 2009, 2010, 2011, 3163
Harley-Davidson FLHRC 1584 Road King Classic - 2008, 2009, 2010, 2011, 3164
Harley-Davidson FLHRC 1584 ABS Road King Classic - 2008, 2009, 2010, 2011, 3165
Harley-Davidson FLHRC 1690 ABS Road King Classic - 2008, 2009, 2010, 2011, 3166
Harley-Davidson FLHRC 1690 ABS Road King Classic - 2008, 2009, 2010, 2011, 3167
Harley-Davidson FLHRS 1584 Road King Custom - 2008, 2009, 2010, 2011, 3168
Harley-Davidson FLHRSE3 1800 Road King Screamin Eagle - 2008, 2009, 2010, 2011, 3169
Harley-Davidson FLHRSE4 1800 ABS Road King Screamin Eagle - 2008, 2009, 2010, 2011, 3170
Harley-Davidson FLHRSE5 1800 ABS Road King CVO - 2008, 2009, 2010, 2011, 3171
Harley-Davidson FLHRSE5 1800 ABS Road King CVO 110th Anniversary - 2008, 2009, 2010, 2011, 3172
Harley-Davidson FLHRSE6 1800 ABS Road King CVO - 2008, 2009, 2010, 2011, 3173
Harley-Davidson FLHT 1584 Electra Glide - 2008, 2009, 2010, 2011, 3174
Harley-Davidson FLHT 1584 Electra Glide - 2008, 2009, 2010, 2011, 3175
Harley-Davidson FLHT 1584 ABS Electra Glide - 2008, 2009, 2010, 2011, 3176
Harley-Davidson FLHTC 1690 ABS Electra Glide Classic - 2008, 2009, 2010, 2011, 3177
Harley-Davidson FLHTC 1690 ABS Electra Glide Classic - 2008, 2009, 2010, 2011, 3178
Harley-Davidson FLHTCU 1584 Electra Glide Ultra Classic - 2008, 2009, 2010, 2011, 3179
Harley-Davidson FLHTCU 1584 Electra Glide Ultra Classic - 2008, 2009, 2010, 2011, 3180
Harley-Davidson FLHTCU 1584 ABS Electra Glide Ultra Classic - 2008, 2009, 2010, 2011, 3181
Harley-Davidson FLHTCU 1690 Electra Glide Ultra Classic - 2008, 2009, 2010, 2011, 3182
Harley-Davidson FLHTCU 1690 ABS Electra Glide Ultra Classic - 2008, 2009, 2010, 2011, 3183
Harley-Davidson FLHTCU 1690 ABS Electra Glide Ultra Classic - 2008, 2009, 2010, 2011, 3184
Harley-Davidson FLHTCUSE2 1800 Electra Glide Ultra Classic Screamin Eagle - 2008, 2009, 2010, 2011, 3185
Harley-Davidson FLHTCUSE3 1800 ABS Electra Glide Ultra Classic Screamin Eagle - 2008, 2009, 2010, 2011, 3186
Harley-Davidson FLHTCUSE4 1800 ABS Electra Glide Ultra Classic CVO - 2008, 2009, 2010, 2011, 3187
Harley-Davidson FLHTCUSE5 1800 ABS Electra Glide Ultra Classic CVO - 2008, 2009, 2010, 2011, 3188
Harley-Davidson FLHTCUSE6 1800 ABS Electra Glide Ultra Classic CVO - 2008, 2009, 2010, 2011, 3189
Harley-Davidson FLHTCUSE7 1800 ABS Electra Glide Ultra Classic CVO - 2008, 2009, 2010, 2011, 3190
Harley-Davidson FLHTCUSE8 1800 ABS Electra Glide Ultra Classic CVO - 2008, 2009, 2010, 2011, 3191
Harley-Davidson FLHTCUSE8 1800 ABS Electra Glide Ultra Classic CVO 110th Anniversary - 2008, 2009, 2010, 2011, 3192
Harley-Davidson FLHTCUTG 1690 Trike Tri Glide Ultra Classic - 2008, 2009, 2010, 2011, 3193
Harley-Davidson FLHTK 1584 ABS Electra Glide Ultra Limited - 2008, 2009, 2010, 2011, 3194
Harley-Davidson FLHTK 1690 ABS Electra Glide Ultra Limited - 2008, 2009, 2010, 2011, 3195
Harley-Davidson FLHTK 1690 ABS Electra Glide Ultra Limited - 2008, 2009, 2010, 2011, 3196
Harley-Davidson FLHTK 1690 ABS Electra Glide Ultra Limited 110th Anniversary - 2008, 2009, 2010, 2011, 3197
Harley-Davidson FLHTKL 1690 ABS Electra Glide Ultra Limited Low - 2008, 2009, 2010, 2011, 3198
Harley-Davidson FLHTKSE 1800 ABS Electra Glide Ultra Limited CVO - 2008, 2009, 2010, 2011, 3199
Harley-Davidson FLHX 1584 Street Glide - 2008, 2009, 2010, 2011, 3200
Harley-Davidson FLHX 1584 Street Glide - 2008, 2009, 2010, 2011, 3201
Harley-Davidson FLHX 1584 ABS Street Glide - 2008, 2009, 2010, 2011, 3202
Harley-Davidson FLHX 1690 Street Glide - 2008, 2009, 2010, 2011, 3203
Harley-Davidson FLHX 1690 Street Glide - 2008, 2009, 2010, 2011, 3204
Harley-Davidson FLHX 1690 ABS Street Glide - 2008, 2009, 2010, 2011, 3205
Harley-Davidson FLHX 1690 ABS Street Glide - 2008, 2009, 2010, 2011, 3206
Harley-Davidson FLHXS 1690 ABS Street Glide Special - 2008, 2009, 2010, 2011, 3207
Harley-Davidson FLHXSE 1800 ABS Street Glide CVO - 2008, 2009, 2010, 2011, 3208
Harley-Davidson FLHXSE 1800 ABS Street Glide CVO - 2008, 2009, 2010, 2011, 3209
Harley-Davidson FLHXSE2 1800 ABS Street Glide CVO - 2008, 2009, 2010, 2011, 3210
Harley-Davidson FLHXSE3 1800 ABS Street Glide CVO - 2008, 2009, 2010, 2011, 3211
Harley-Davidson FLS 1690 Softail Slim - 2008, 2009, 2010, 2011, 3212
Harley-Davidson FLS 1690 ABS Softail Slim - 2008, 2009, 2010, 2011, 3213
Harley-Davidson FLS 1690 ABS Softail Slim - 2008, 2009, 2010, 2011, 3214
Harley-Davidson FLSS 1800 ABS Softail Slim S - 2008, 2009, 2010, 2011, 3215
Harley-Davidson FLSTC 1584 Heritage Softail Classic - 2008, 2009, 2010, 2011, 3216
Harley-Davidson FLSTC 1584 ABS Heritage Softail Classic - 2008, 2009, 2010, 2011, 3217
Harley-Davidson FLSTC 1690 Heritage Softail Classic - 2008, 2009, 2010, 2011, 3218
Harley-Davidson FLSTC 1690 ABS Heritage Softail Classic - 2008, 2009, 2010, 2011, 3219
Harley-Davidson FLSTC 1690 ABS Heritage Softail Classic - 2008, 2009, 2010, 2011, 3220
Harley-Davidson FLSTC 1690 ABS Heritage Softail Classic 110th Anniversary - 2008, 2009, 2010, 2011, 3221
Harley-Davidson FLSTF 1584 Fat Boy - 2008, 2009, 2010, 2011, 3222
Harley-Davidson FLSTF 1584 ABS Fat Boy - 2008, 2009, 2010, 2011, 3223
Harley-Davidson FLSTF 1690 Fat Boy - 2008, 2009, 2010, 2011, 3224
Harley-Davidson FLSTF 1690 ABS Fat Boy - 2008, 2009, 2010, 2011, 3225
Harley-Davidson FLSTF 1690 ABS Fat Boy - 2008, 2009, 2010, 2011, 3226
Harley-Davidson FLSTFB 1584 Fat Boy Special - 2008, 2009, 2010, 2011, 3227
Harley-Davidson FLSTFB 1584 ABS Fat Boy Special - 2008, 2009, 2010, 2011, 3228
Harley-Davidson FLSTFB 1690 ABS Fat Boy Special - 2008, 2009, 2010, 2011, 3229
Harley-Davidson FLSTFB 1690 ABS Fat Boy Special - 2008, 2009, 2010, 2011, 3230
Harley-Davidson FLSTFB 1690 ABS Fat Boy Special 110th Anniversary - 2008, 2009, 2010, 2011, 3231
Harley-Davidson FLSTFBS 1800 ABS Fat Boy S - 2008, 2009, 2010, 2011, 3232
Harley-Davidson FLSTFBS 1800 ABS Fat Boy S - 2008, 2009, 2010, 2011, 3233
Harley-Davidson FLSTN 1584 Softail Deluxe - 2008, 2009, 2010, 2011, 3234
Harley-Davidson FLSTN 1584 ABS Softail Deluxe - 2008, 2009, 2010, 2011, 3235
Harley-Davidson FLSTN 1690 Softail Deluxe - 2008, 2009, 2010, 2011, 3236
Harley-Davidson FLSTN 1690 ABS Softail Deluxe - 2008, 2009, 2010, 2011, 3237
Harley-Davidson FLSTN 1690 ABS Softail Deluxe - 2008, 2009, 2010, 2011, 3238
Harley-Davidson FLSTNSE 1800 ABS Softail Deluxe CVO - 2008, 2009, 2010, 2011, 3239
Harley-Davidson FLSTSB 1584 Cross Bones - 2008, 2009, 2010, 2011, 3240
Harley-Davidson FLSTSB 1584 Cross Bones - 2008, 2009, 2010, 2011, 3241
Harley-Davidson FLSTSC 1584 Softail Springer Classic - 2008, 2009, 2010, 2011, 3242
Harley-Davidson FLSTSE 1800 Softail Convertible CVO - 2008, 2009, 2010, 2011, 3243
Harley-Davidson FLSTSE2 1800 ABS Softail Convertible CVO - 2008, 2009, 2010, 2011, 3244
Harley-Davidson FLSTSE3 1800 ABS Softail Convertible CVO - 2008, 2009, 2010, 2011, 3245
Harley-Davidson FLTRSE3 1800 ABS Road Glide CVO - 2008, 2009, 2010, 2011, 3246
Harley-Davidson FLTRU 1690 ABS Road Glide Ultra - 2008, 2009, 2010, 2011, 3247
Harley-Davidson FLTRUSE 1800 ABS Road Glide Ultra CVO - 2008, 2009, 2010, 2011, 3248
Harley-Davidson FLTRUSE2 1800 ABS Road Glide Ultra CVO - 2008, 2009, 2010, 2011, 3249
Harley-Davidson FLTRXS 1690 A Road Glide Special - 2008, 2009, 2010, 2011, 3250
Harley-Davidson FLTRXSE 1800 ABS Road Glide Custom CVO - 2008, 2009, 2010, 2011, 3251
Harley-Davidson FLTRXSE2 1800 ABS Road Glide Custom CVO - 2008, 2009, 2010, 2011, 3252
Harley-Davidson FLTRXSE2 1800 ABS Road Glide Custom CVO 110th Anniversary - 2008, 2009, 2010, 2011, 3253
Harley-Davidson FXCW 1584 Rocker - 2008, 2009, 2010, 2011, 3254
Harley-Davidson FXCWC 1584 Rocker C - 2008, 2009, 2010, 2011, 3255
Harley-Davidson FXCWC 1584 ABS Rocker C - 2008, 2009, 2010, 2011, 3256
Harley-Davidson FXDB 1584 Dyna Street Bob - 2008, 2009, 2010, 2011, 3257
Harley-Davidson FXDB 1584 ABS Dyna Street Bob - 2008, 2009, 2010, 2011, 3258
Harley-Davidson FXDB 1690 Dyna Street Bob - 2008, 2009, 2010, 2011, 3259
Harley-Davidson FXDB 1690 ABS Dyna Street Bob - 2008, 2009, 2010, 2011, 3260
Harley-Davidson FXDB 1690 ABS Dyna Street Bob - 2008, 2009, 2010, 2011, 3261
Harley-Davidson FXDBA 1584 Dyna Street Bob Limited - 2008, 2009, 2010, 2011, 3262
Harley-Davidson FXDBA 1584 ABS Dyna Street Bob Limited - 2008, 2009, 2010, 2011, 3263
Harley-Davidson FXDBA 1690 Dyna Street Bob Limited - 2008, 2009, 2010, 2011, 3264
Harley-Davidson FXDBA 1690 ABS Dyna Street Bob Limited - 2008, 2009, 2010, 2011, 3265
Harley-Davidson FXDBB 1690 Dyna Street Bob Special - 2008, 2009, 2010, 2011, 3266
Harley-Davidson FXDBB 1690 A Dyna Street Bob Special - 2008, 2009, 2010, 2011, 3267
Harley-Davidson FXDBC 1690 Dyna Street Bob Limited - 2008, 2009, 2010, 2011, 3268
Harley-Davidson FXDBC 1690 A Dyna Street Bob Limited - 2008, 2009, 2010, 2011, 3269
Harley-Davidson FXDBI 1450 EFI Dyna Street Bob - 2008, 2009, 2010, 2011, 3270
Harley-Davidson FXDBP 1690 Dyna Street Bob Factory Custom - 2008, 2009, 2010, 2011, 3271
Harley-Davidson FXDBP 1690 ABS Dyna Street Bob Factory Custom - 2008, 2009, 2010, 2011, 3272
Harley-Davidson FXDC 1584 Dyna Super Glide Custom - 2008, 2009, 2010, 2011, 3273
Harley-Davidson FXDC 1584 ABS Dyna Super Glide Custom - 2008, 2009, 2010, 2011, 3274
Harley-Davidson FXDC 1584 ABS Dyna Super Glide Custom 110th Anniversary - 2008, 2009, 2010, 2011, 3275
Harley-Davidson FXDC 1690 ABS Dyna Super Glide Custom - 2008, 2009, 2010, 2011, 3276
Harley-Davidson FXDCI 1450 EFI Dyna Super Glide Custom - 2008, 2009, 2010, 2011, 3277
Harley-Davidson FXDF 1584 Dyna Fat Bob - 2008, 2009, 2010, 2011, 3278
Harley-Davidson FXDF 1584 ABS Dyna Fat Bob - 2008, 2009, 2010, 2011, 3279
Harley-Davidson FXDF 1690 Dyna Fat Bob - 2008, 2009, 2010, 2011, 3280
Harley-Davidson FXDF 1690 ABS Dyna Fat Bob - 2008, 2009, 2010, 2011, 3281
Harley-Davidson FXDF 1690 ABS Dyna Fat Bob - 2008, 2009, 2010, 2011, 3282
Harley-Davidson FXDFSE 1800 Dyna Fat Bob CVO - 2008, 2009, 2010, 2011, 3283
Harley-Davidson FXDFSE2 1800 Dyna Fat Bob CVO - 2008, 2009, 2010, 2011, 3284
Harley-Davidson FXDI35 1450 EFI Dyna Super Glide 35th Anniversary - 2008, 2009, 2010, 2011, 3285
Harley-Davidson FXDL 1584 Dyna Low Rider - 2008, 2009, 2010, 2011, 3286
Harley-Davidson FXDL 1690 Dyna Low Rider - 2008, 2009, 2010, 2011, 3287
Harley-Davidson FXDL 1690 ABS Dyna Low Rider - 2008, 2009, 2010, 2011, 3288
Harley-Davidson FXDL 1690 ABS Dyna Low Rider - 2008, 2009, 2010, 2011, 3289
Harley-Davidson FXDLI 1450 EFI Dyna Low Rider - 2008, 2009, 2010, 2011, 3290
Harley-Davidson FXDLS 1800 ABS Dyna Low Rider S - 2008, 2009, 2010, 2011, 3291
Harley-Davidson FXDSE 1800 Dyna Screamin Eagle - 2008, 2009, 2010, 2011, 3292
Harley-Davidson FXDSE2 1800 Dyna Screamin Eagle - 2008, 2009, 2010, 2011, 3293
Harley-Davidson FXDWG 1584 Dyna Wide Glide - 2008, 2009, 2010, 2011, 3294
Harley-Davidson FXDWG 1584 ABS Dyna Wide Glide - 2008, 2009, 2010, 2011, 3295
Harley-Davidson FXDWG 1690 ABS Dyna Wide Glide - 2008, 2009, 2010, 2011, 3296
Harley-Davidson FXDWG 1690 ABS Dyna Wide Glide - 2008, 2009, 2010, 2011, 3297
Harley-Davidson FXDWGI 1450 EFI Dyna Wide Glide - 2008, 2009, 2010, 2011, 3298
Harley-Davidson FXS 1584 ABS Blackline - 2008, 2009, 2010, 2011, 3299
Harley-Davidson FXS 1584 ABS Blackline - 2008, 2009, 2010, 2011, 3300
Harley-Davidson FXS 1690 ABS Blackline - 2008, 2009, 2010, 2011, 3301
Harley-Davidson FXSB 1690 Breakout - 2008, 2009, 2010, 2011, 3302
Harley-Davidson FXSB 1690 ABS Breakout - 2008, 2009, 2010, 2011, 3303
Harley-Davidson FXSB 1690 ABS Breakout - 2008, 2009, 2010, 2011, 3304
Harley-Davidson FXSBSE 1800 ABS Breakout CVO - 2008, 2009, 2010, 2011, 3305
Harley-Davidson FXSBSE2 1800 ABS Breakout CVO - 2008, 2009, 2010, 2011, 3306
Harley-Davidson FXSE 1800 ABS Pro Street Breakout CVO - 2008, 2009, 2010, 2011, 3307
Harley-Davidson FXSTB 1584 Softail Night Train - 2008, 2009, 2010, 2011, 3308
Harley-Davidson FXSTC 1584 Softail Custom - 2008, 2009, 2010, 2011, 3309
Harley-Davidson FXSTSSE 1800 Softail Springer Screamin Eagle - 2008, 2009, 2010, 2011, 3310
Harley-Davidson FXSTSSE2 1800 Softail Springer Screamin Eagle - 2008, 2009, 2010, 2011, 3311
Harley-Davidson FXSTSSE3 1800 Softail Springer CVO - 2008, 2009, 2010, 2011, 3312
