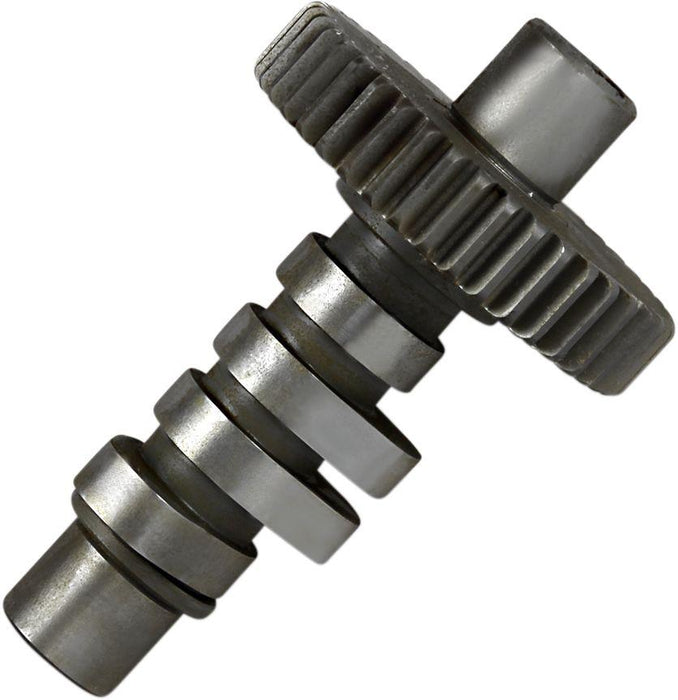

Andrews Low-Compression Cam #212130

Description

Low-Compression Cam

Designed with a combination of shorter durations and higher lifts to offer the advantages of a broad torque output through the entire rpm range

Designed for hydraulics, but could be run with solids

Grind #1 is the low-compression version of an "A" grind cam for 74" and 80" models

Made in the U.S.A.

On late 77 and later engines, the pitch diameter on the camshaft, pinion gear and breather valve gear was changed. These components are not interchangeable with earlier style components unless replaced in sets only. Late 77 and later gear sets are identified by a circular groove machined in the outer face of the cam gear.

Grind #1 is the low-compression version of an "A" grind cam for 74" and 80" models

Details

Exhaust Close : 16°
Intake Close : 36°
Exhaust Lift Imperial : Shovel: 0.427" Pan: 0.450"
Units : Each
Exhaust Lift at TDC Imperial : 0.136"
Intake Open Imperial : 16°
Exhaust Duration Imperial : 232°
Intake Close Imperial : 36°
Product Name : Cam
Exhaust Close Imperial : 16°
Application : Exhaust| Intake
Intake Duration Imperial : 232°
Exhaust Open : 36°
Grind : #1
Intake Open : 16°
Exhaust Lift : Shovel: 0,427" Pan: 0,450"
Exhaust Lift at TDC : 0,136"
Intake Duration : 232°
Intake Lift at TDC : 0,136"
Exhaust Duration : 232°
Exhaust Open Imperial : 36°
Intake Lift : Shovel: 0,427" Pan: 0,450"
Intake Lift at TDC Imperial : 0.136"
Intake Lift Imperial : Shovel: 0.427" Pan: 0.450"

Fitment

Harley Davidson F 1200 - 1948
Harley Davidson F 1200 Hydra Glide - 1949, 1950, 1951, 1952
Harley Davidson FL 1200 - 1948
Harley Davidson FL 1200 Duo Glide - 1958, 1959, 1960, 1961, 1962, 1963, 1964
Harley Davidson FL 1200 Hydra Glide - 1949, 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957
Harley Davidson FLB 1200 Electra Glide - 1965, 1966, 1967, 1968, 1969
Harley Davidson FLE 1200 Hydra Glide - 1953, 1954, 1955, 1956
Harley Davidson FLEF 1200 Hydra Glide - 1953, 1954, 1955, 1956
Harley Davidson FLF 1200 Duo Glide - 1958, 1959, 1960, 1961, 1962, 1963, 1964
Harley Davidson FLF 1200 Hydra Glide - 1952, 1953, 1954, 1955, 1956, 1957
Harley Davidson FLFB 1200 Electra Glide - 1965, 1966, 1967, 1968, 1969
Harley Davidson FLH 1200 Duo Glide - 1958, 1959, 1960, 1961, 1962, 1963, 1964
Harley Davidson FLH 1200 Hydra Glide - 1955, 1956, 1957
Harley Davidson FLHB 1200 Electra Glide - 1965, 1966, 1967, 1968, 1969
Harley Davidson FLHF 1200 Duo Glide - 1958, 1959, 1960, 1961, 1962, 1963, 1964
Harley Davidson FLHF 1200 Hydra Glide - 1955, 1956, 1957
Harley Davidson FLHFB 1200 Electra Glide - 1965, 1966, 1967, 1968, 1969
