Description

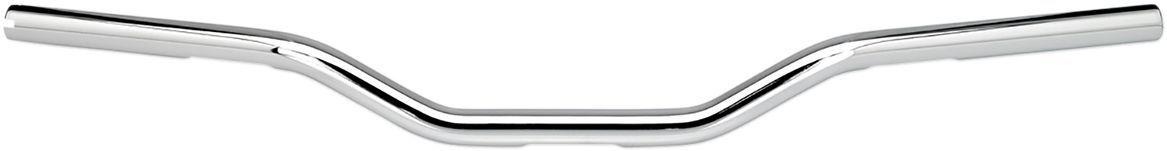

1" Throttle-By-Wire HandlebarManufactured from 1" OD x 0.120” wall seamless 4130 chromoly tubing
CNC-machined slots for internal cable routing
All bends are created with internal mandrels on a CNC bender to reduce flat spots in the bends
All welded joints are precision mitred and TIG welded
Internal tube tapering on right bar to accept TBW module
If grip sets aren't installed, bars will be 1-1/8" shorter than listed
Details
Height : 57,2 mm (2-1/4")Material : Steel
Width : 77,5 cm (30-1/2")
Handlebar Diameter : 25,4 mm (1")
Units : Each
Product Name : Handlebar
Base Colour : Silver
Type/Bend : Tracker
Colour/Finish : Chrome
Centre Width : 12,5 cm (5")
Clamping Diameter : 25,4 mm (1")
End Rise : 44,5 mm (1-3/4")
Base Finish : Chrome
Rise : 57,2 mm (2-1/4")
Controls Diameter : 25,4 mm (1")
Pullback/Sweep : 63,5 mm (2-1/2")
Features : Not Dimpled| Notched for Throttle-By-Wire
