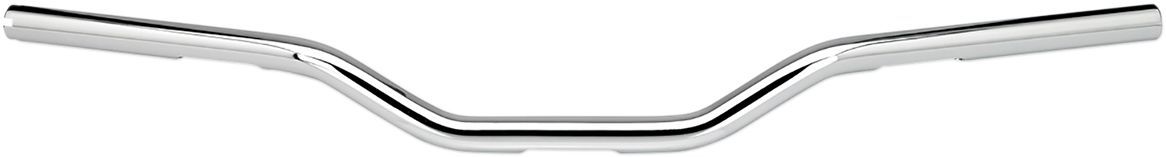

Biltwell Chrome Mid Tracker 1" Throttle-By-Wire Handlebar #6008-1055

Description

1" Throttle-By-Wire Handlebar
Manufactured from 1" OD x 0.120” wall seamless 4130 chromoly tubing
CNC-machined slots for internal cable routing
All bends are created with internal mandrels on a CNC bender to reduce flat spots in the bends
All welded joints are precision mitred and TIG welded
Internal tube tapering on right bar to accept TBW module
If grip sets aren't installed, bars will be 1-1/8" shorter than listed

Details

Base Colour : Silver
Type/Bend : Mid| Tracker
Units : Each
Features : Not Dimpled| Notched for Throttle-By-Wire
Controls Diameter : 25,4 mm (1")
Pullback/Sweep : 69,9 mm (2-3/4")
Base Finish : Chrome
Product Name : Handlebar
Handlebar Diameter : 25,4 mm (1")
Width : 77,5 cm (30-1/2")
Clamping Diameter : 25,4 mm (1")
End Rise : 76,2 mm (3")
Material : Steel
Rise : 82,6 mm (3-1/4")
Centre Width : 12,5 cm (5")
Colour/Finish : Chrome
Height : 82,6 mm (3-1/4")
