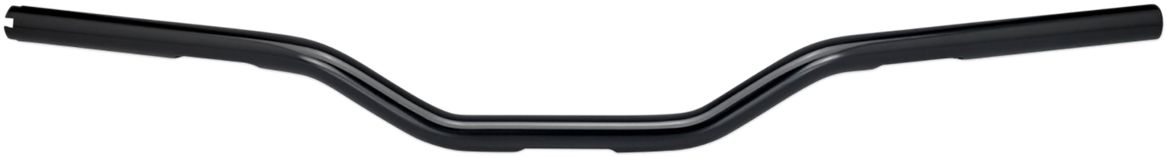

Biltwell Black Mid Tracker 1" Throttle-By-Wire Handlebar #6008-2015

Description

1" Throttle-By-Wire Handlebar
Manufactured from 1" OD x 0.120” wall seamless 4130 chromoly tubing
CNC-machined slots for internal cable routing
All bends are created with internal mandrels on a CNC bender to reduce flat spots in the bends
All welded joints are precision mitred and TIG welded
Internal tube tapering on right bar to accept TBW module
If grip sets aren't installed, bars will be 1-1/8" shorter than listed

Details

End Rise : 76,2 mm (3")
Type/Bend : Mid| Tracker
Handlebar Diameter : 25,4 mm (1")
Width : 77,5 cm (30-1/2")
Pullback/Sweep : 69,9 mm (2-3/4")
Product Name : Handlebar
Centre Width : 12,5 cm (5")
Units : Each
Height : 82,6 mm (3-1/4")
Features : Not Dimpled| Notched for Throttle-By-Wire
Controls Diameter : 25,4 mm (1")
Base Colour : Black
Clamping Diameter : 25,4 mm (1")
Material : Steel
Colour/Finish : Black
Rise : 82,6 mm (3-1/4")
