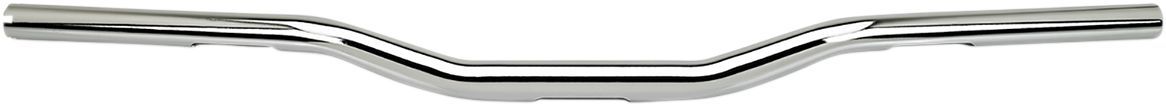

Biltwell Chrome Tracker O/S Tracker O/S Handlebar #6307-1055

Description

Tracker O/S Handlebar
Manufactured from 1" OD x 0.120” wall seamless 4130 chromoly tubing
All bends are created with internal mandrels on a CNC bender to reduce flat spots in the bends
All welded joints are precision mitred and TIG welded
If grip sets aren't installed, bars will be 1-1/8" shorter than listed
These bars will not mount to normal 1” clamps found on the majority of stock and aftermarket risers1-1/8" OD centre section that tapers to 1" OD at grip ends

Details

Features : Notched for Throttle-By-Wire| Smooth, Unknurled
Pullback/Sweep : 63,5 mm (2-1/2")
Controls Diameter : 25,4 mm (1")
Centre Width : 12,5 cm (5")
Units : Each
Colour/Finish : Chrome
Product Name : Handlebar
Rise : 57,2 mm (2-1/4")
Handlebar Diameter : 28,6 mm (1-1/8")
Width : 77,5 cm (30-1/2")
Clamping Diameter : 28,6 mm (1-1/8")
Height : 57,2 mm (2-1/4")
Type/Bend : Tracker O/S
End Rise : 44,5 mm (1-3/4")
Base Colour : Silver
Base Finish : Chrome
Material : Chromoly
