Description

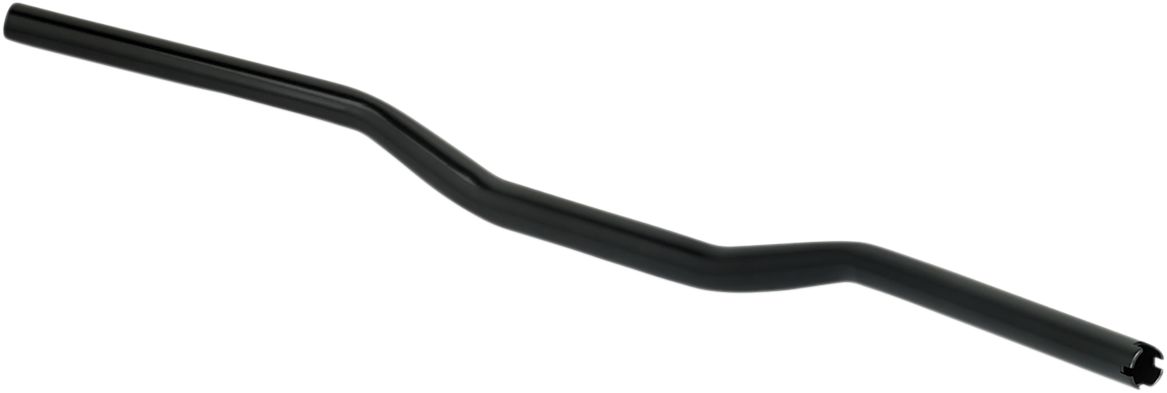

Tracker O/S HandlebarManufactured from 1" OD x 0.120†wall seamless 4130 chromoly tubing
All bends are created with internal mandrels on a CNC bender to reduce flat spots in the bends
All welded joints are precision mitred and TIG welded
If grip sets aren't installed, bars will be 1-1/8" shorter than listed
These bars will not mount to normal 1†clamps found on the majority of stock and aftermarket risers1-1/8" OD centre section that tapers to 1" OD at grip ends
Details
Units : EachEnd Rise : 44,5 mm (1-3/4")
Width : 77,5 cm (30-1/2")
Clamping Diameter : 28,6 mm (1-1/8")
Pullback/Sweep : 63,5 mm (2-1/2")
Colour/Finish : Black
Product Name : Handlebar
Material : Chromoly
Features : Notched for Throttle-By-Wire| Smooth, Unknurled
Base Colour : Black
Controls Diameter : 25,4 mm (1")
Height : 57,2 mm (2-1/4")
Handlebar Diameter : 28,6 mm (1-1/8")
Rise : 57,2 mm (2-1/4")
Type/Bend : Tracker O/S
Centre Width : 12,5 cm (5")
