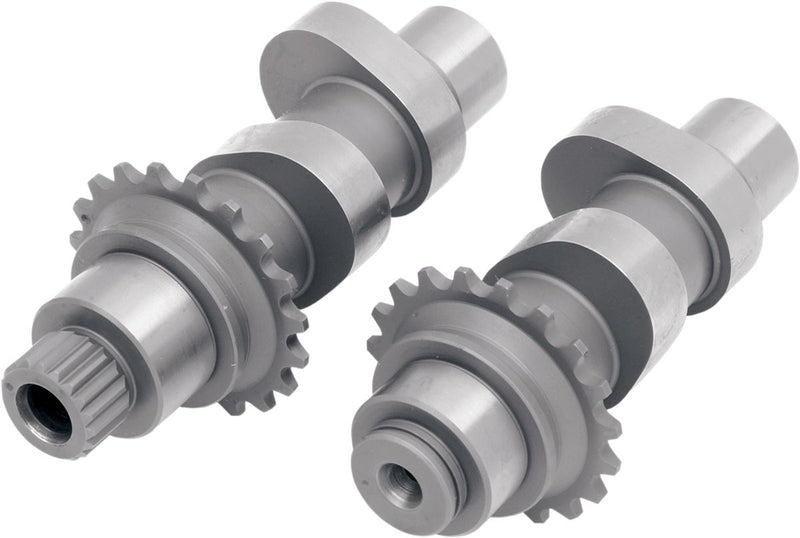

Andrews Chain Driven Cam #216850
Description
Chain Driven CamAllow you to upgrade your 99-06 Twin Cam (except 06 Dyna Glide) to the newer roller-style cam chains and replaces the spring tension cam chain adjusters with the later-style hydraulic adjusters for longer life
Cam grinds listed are designed to be used with stock lifters; they require the installation of a 07-17 cam plate, oil pump, cam sprockets and chains, and both hydraulic chain adjusters (these parts are not included and must be purchased separately)
A list of required components is supplied with each set of cams
Performance should be similar to earlier bikes with the same cam grinds
Made in the U.S.A.
99-06 Twin Cam motors (except 06 Dyna Glide) cannot use the 07-17 cams, as the bearing journal on the earlier motors is .875" in diameter and the 07-17 cams are 1.000" in diameter. The "N" series of cams feature the .875" bearing journal, yet still accept the new style cam support plate
99-01 model motors must use the Andrews rear cam sprocket Drag part #0925-0147. 2002-2006 models must use the stock rear cam sprocket, OEM #25728-06
Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearanceDesigned for easy installation in 95 inch motors with stock heads For lighter bikes with 9.5:1 to 9.8:1 compression ratio (2400-6000+ RPM) Can be used with stock valve springs and tappets, but valve travel must be checked (minimum .620") Piston-to-valve and valve-to-valve clearance must be checked
Details
Exhaust Close : 18°Features : Can Be Used with Stock Springs and Tappets
Intake Duration : 248°
Application : Exhaust| Intake
Exhaust Close Imperial : 18°
Exhaust Lobe Centreline Imperial : 108°
Type : Chain
Exhaust Open Imperial : 54°
Exhaust Duration : 252°
Exhaust Lift at TDC Imperial : 0.168"
Intake Lift at TDC : 0,184"
Intake Open : 20°
Exhaust Lift : 0,510"
Exhaust Lift Imperial : 0.510"
Intake Lift : 0,510"
Grind : 50 Series
Exhaust Duration Imperial : 252°
Product Name : Cam Kit
Intake Lift at TDC Imperial : 0.184"
Intake Lift Imperial : 0.510"
Exhaust Lift at TDC : 0,168"
Exhaust Open : 54°
Intake Duration Imperial : 248°
Units : Pair
Intake Lobe Centreline : 104°
Intake Open Imperial : 20°
Intake Close Imperial : 48°
Intake Lobe Centreline Imperial : 104°
Exhaust Lobe Centreline : 108°
Intake Close : 48°
Fitment
Harley-Davidson FLHR 1450 Road King - 2008, 2009, 2010, 2011, 3529Harley-Davidson FLHR 1450 Road King - 2008, 2009, 2010, 2011, 3530
Harley-Davidson FLHRCI 1450 EFI Road King Classic - 2008, 2009, 2010, 2011, 3531
Harley-Davidson FLHRCI 1450 EFI Road King Classic - 2008, 2009, 2010, 2011, 3532
Harley-Davidson FLHRI 1450 EFI Road King - 2008, 2009, 2010, 2011, 3533
Harley-Davidson FLHRSEI 1550 Road King Screamin Eagle - 2008, 2009, 2010, 2011, 3534
Harley-Davidson FLHRSEI2 1690 Road King Screamin Eagle - 2008, 2009, 2010, 2011, 3535
Harley-Davidson FLHRSI 1450 EFI Road King Custom - 2008, 2009, 2010, 2011, 3536
Harley-Davidson FLHT 1450 Electra Glide - 2008, 2009, 2010, 2011, 3537
Harley-Davidson FLHT 1450 Electra Glide - 2008, 2009, 2010, 2011, 3538
Harley-Davidson FLHTC 1450 Electra Glide Classic - 2008, 2009, 2010, 2011, 3539
Harley-Davidson FLHTCI 1450 EFI Electra Glide Classic - 2008, 2009, 2010, 2011, 3540
Harley-Davidson FLHTCSE2 1690 EFI Electra Glide Screamin Eagle - 2008, 2009, 2010, 2011, 3541
Harley-Davidson FLHTCUI 1450 EFI Electra Glide Ultra Classic - 2008, 2009, 2010, 2011, 3542
Harley-Davidson FLHTCUI 1450 EFI Electra Glide Ultra Classic - 2008, 2009, 2010, 2011, 3543
Harley-Davidson FLHTCUSE 1690 Electra Glide Ultra Classic Screamin Eagle - 2008, 2009, 2010, 2011, 3544
Harley-Davidson FLHTI 1450 EFI Electra Glide - 2008, 2009, 2010, 2011, 3545
Harley-Davidson FLHXI 1450 EFI Street Glide - 2008, 2009, 2010, 2011, 3546
Harley-Davidson FLSTC 1450 Heritage Softail Classic - 2008, 2009, 2010, 2011, 3547
Harley-Davidson FLSTCI 1450 EFI Heritage Softail Classic - 2008, 2009, 2010, 2011, 3548
Harley-Davidson FLSTF 1450 Fat Boy - 2008, 2009, 2010, 2011, 3549
Harley-Davidson FLSTFI 1450 EFI Fat Boy - 2008, 2009, 2010, 2011, 3550
Harley-Davidson FLSTFI 1550 EFI Fat Boy 15th Anniversary - 2008, 2009, 2010, 2011, 3551
Harley-Davidson FLSTFSE 1690 Fat Boy Screamin Eagle - 2008, 2009, 2010, 2011, 3552
Harley-Davidson FLSTFSE2 1690 Fat Boy Screamin Eagle - 2008, 2009, 2010, 2011, 3553
Harley-Davidson FLSTI 1450 EFI Heritage Softail - 2008, 2009, 2010, 2011, 3554
Harley-Davidson FLSTNI 1450 EFI Softail Deluxe - 2008, 2009, 2010, 2011, 3555
Harley-Davidson FLSTS 1450 Heritage Softail Springer - 2008, 2009, 2010, 2011, 3556
Harley-Davidson FLSTSC 1450 Softail Springer Classic - 2008, 2009, 2010, 2011, 3557
Harley-Davidson FLSTSCI 1450 EFI Softail Springer Classic - 2008, 2009, 2010, 2011, 3558
Harley-Davidson FLTRSEI 1550 Road Glide Screamin Eagle - 2008, 2009, 2010, 2011, 3559
Harley-Davidson FXD 1450 Dyna Super Glide - 2008, 2009, 2010, 2011, 3560
Harley-Davidson FXD 1450 Dyna Super Glide - 2008, 2009, 2010, 2011, 3561
Harley-Davidson FXDCI 1450 EFI Dyna Super Glide Custom - 2008, 2009, 2010, 2011, 3562
Harley-Davidson FXDI 1450 EFI Dyna Super Glide - 2008, 2009, 2010, 2011, 3563
Harley-Davidson FXDL 1450 Dyna Low Rider - 2008, 2009, 2010, 2011, 3564
Harley-Davidson FXDL 1450 Dyna Low Rider - 2008, 2009, 2010, 2011, 3565
Harley-Davidson FXDLI 1450 EFI Dyna Low Rider - 2008, 2009, 2010, 2011, 3566
Harley-Davidson FXDWG 1450 Dyna Wide Glide - 2008, 2009, 2010, 2011, 3567
Harley-Davidson FXDWG 1450 Dyna Wide Glide - 2008, 2009, 2010, 2011, 3568
Harley-Davidson FXDWG2 1450 Dyna Wide Glide Limited Edition - 2008, 2009, 2010, 2011, 3569
Harley-Davidson FXDWG3 1450 Dyna Wide Glide Limited Edition - 2008, 2009, 2010, 2011, 3570
Harley-Davidson FXDWGI 1450 EFI Dyna Wide Glide - 2008, 2009, 2010, 2011, 3571
Harley-Davidson FXDX 1450 Dyna Super Glide Sport - 2008, 2009, 2010, 2011, 3572
Harley-Davidson FXDXI 1450 EFI Dyna Super Glide Sport - 2008, 2009, 2010, 2011, 3573
Harley-Davidson FXDXT 1450 Dyna Super Glide T-Sport - 2008, 2009, 2010, 2011, 3574
Harley-Davidson FXST 1450 Softail - 2008, 2009, 2010, 2011, 3575
Harley-Davidson FXSTB 1450 Softail Night Train - 2008, 2009, 2010, 2011, 3576
Harley-Davidson FXSTBI 1450 EFI Softail Night Train - 2008, 2009, 2010, 2011, 3577
Harley-Davidson FXSTD 1450 Softail Deuce - 2008, 2009, 2010, 2011, 3578
Harley-Davidson FXSTDI 1450 EFI Softail Deuce - 2008, 2009, 2010, 2011, 3579
Harley-Davidson FXSTI 1450 EFI Softail - 2008, 2009, 2010, 2011, 3580
Harley-Davidson FXSTS 1450 Softail Springer - 2008, 2009, 2010, 2011, 3581
Harley-Davidson FXSTSI 1450 EFI Softail Springer - 2008, 2009, 2010, 2011, 3582
