Description

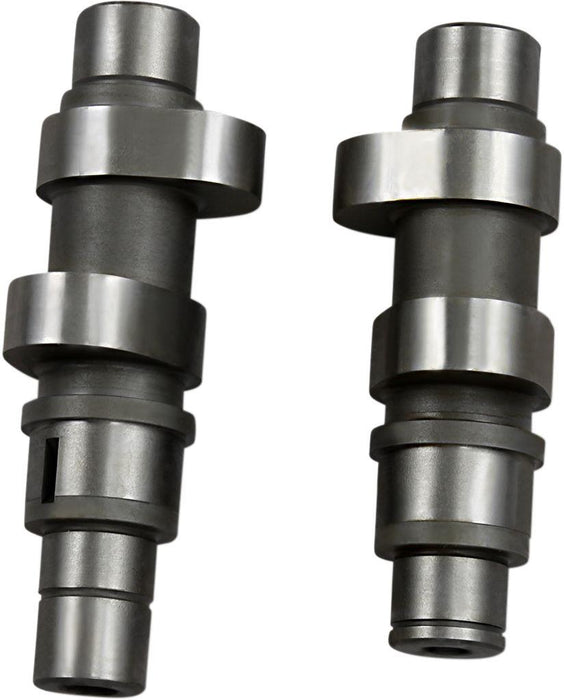

Grind CamCams work well with fuel injection or carburettor models
Run best with low restriction exhausts (1700-5200 rpm)
Works well with carbs or fuel injection
Bolt-in cam for more torque with stock compression
Can be used with stock valve springs and tappets
Similar to the EV-23 cam
All Andrews gear-driven cams require four-gear set for installation (DS-199532 for 99-06 applications; 0925-0166 or 0925-0152 for 07-17 Twin Cam and 06 Dyna applications).
Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
59G, 60G and 64G cams are for highly tuned engines and require the knowledge of an expert engine builder for proper setup and installation.Cams for maximum torque and horsepower at higher RPM ranges (2600-6000+ RPM) Designed for engines with 9.5:1 compression ratio or higher with 88"-95" Coil bind must be checked, but stock tappets can be used
Details
Exhaust Open Imperial : 52°Intake Open Imperial : 22°
Exhaust Open : 52°
Intake Close : 46°
Exhaust Lobe Centreline : 106°
Intake Lift at TDC : 0,197"
Product Name : Cam Kit
Application : Exhaust| Intake
Intake Lobe Centreline Imperial : 102°
Grind : 55 Series
Exhaust Lift at TDC Imperial : 0.181"
Exhaust Lobe Centreline Imperial : 106°
Exhaust Close : 20°
Intake Close Imperial : 46°
Exhaust Duration Imperial : 252°
Intake Lift : 0,550"
Intake Open : 22°
Type : Gear
Exhaust Lift : 0,550"
Exhaust Lift at TDC : 0,181"
Intake Duration : 248°
Intake Lift Imperial : 0.550"
Intake Duration Imperial : 248°
Exhaust Duration : 252°
Intake Lobe Centreline : 102°
Exhaust Lift Imperial : 0.550"
Exhaust Close Imperial : 20°
Intake Lift at TDC Imperial : 0.197"
Units : Pair
Fitment
Harley-Davidson FLHR 1450 Road King - 2008, 2009, 2010, 2011, 10280Harley-Davidson FLHR 1450 Road King - 2008, 2009, 2010, 2011, 10281
Harley-Davidson FLHRCI 1450 EFI Road King Classic - 2008, 2009, 2010, 2011, 10282
Harley-Davidson FLHRCI 1450 EFI Road King Classic - 2008, 2009, 2010, 2011, 10283
Harley-Davidson FLHRI 1450 EFI Road King - 2008, 2009, 2010, 2011, 10284
Harley-Davidson FLHRSEI 1550 Road King Screamin Eagle - 2008, 2009, 2010, 2011, 10285
Harley-Davidson FLHRSEI2 1690 Road King Screamin Eagle - 2008, 2009, 2010, 2011, 10286
Harley-Davidson FLHRSI 1450 EFI Road King Custom - 2008, 2009, 2010, 2011, 10287
Harley-Davidson FLHT 1450 Electra Glide - 2008, 2009, 2010, 2011, 10288
Harley-Davidson FLHT 1450 Electra Glide - 2008, 2009, 2010, 2011, 10289
Harley-Davidson FLHTC 1450 Electra Glide Classic - 2008, 2009, 2010, 2011, 10290
Harley-Davidson FLHTCI 1450 EFI Electra Glide Classic - 2008, 2009, 2010, 2011, 10291
Harley-Davidson FLHTCSE2 1690 EFI Electra Glide Screamin Eagle - 2008, 2009, 2010, 2011, 10292
Harley-Davidson FLHTCUI 1450 EFI Electra Glide Ultra Classic - 2008, 2009, 2010, 2011, 10293
Harley-Davidson FLHTCUI 1450 EFI Electra Glide Ultra Classic - 2008, 2009, 2010, 2011, 10294
Harley-Davidson FLHTCUSE 1690 Electra Glide Ultra Classic Screamin Eagle - 2008, 2009, 2010, 2011, 10295
Harley-Davidson FLHTI 1450 EFI Electra Glide - 2008, 2009, 2010, 2011, 10296
Harley-Davidson FLHXI 1450 EFI Street Glide - 2008, 2009, 2010, 2011, 10297
Harley-Davidson FLSTC 1450 Heritage Softail Classic - 2008, 2009, 2010, 2011, 10298
Harley-Davidson FLSTCI 1450 EFI Heritage Softail Classic - 2008, 2009, 2010, 2011, 10299
Harley-Davidson FLSTF 1450 Fat Boy - 2008, 2009, 2010, 2011, 10300
Harley-Davidson FLSTFI 1450 EFI Fat Boy - 2008, 2009, 2010, 2011, 10301
Harley-Davidson FLSTFI 1550 EFI Fat Boy 15th Anniversary - 2008, 2009, 2010, 2011, 10302
Harley-Davidson FLSTFSE 1690 Fat Boy Screamin Eagle - 2008, 2009, 2010, 2011, 10303
Harley-Davidson FLSTFSE2 1690 Fat Boy Screamin Eagle - 2008, 2009, 2010, 2011, 10304
Harley-Davidson FLSTI 1450 EFI Heritage Softail - 2008, 2009, 2010, 2011, 10305
Harley-Davidson FLSTNI 1450 EFI Softail Deluxe - 2008, 2009, 2010, 2011, 10306
Harley-Davidson FLSTS 1450 Heritage Softail Springer - 2008, 2009, 2010, 2011, 10307
Harley-Davidson FLSTSC 1450 Softail Springer Classic - 2008, 2009, 2010, 2011, 10308
Harley-Davidson FLSTSCI 1450 EFI Softail Springer Classic - 2008, 2009, 2010, 2011, 10309
Harley-Davidson FLTRSEI 1550 Road Glide Screamin Eagle - 2008, 2009, 2010, 2011, 10310
Harley-Davidson FXD 1450 Dyna Super Glide - 2008, 2009, 2010, 2011, 10311
Harley-Davidson FXD 1450 Dyna Super Glide - 2008, 2009, 2010, 2011, 10312
Harley-Davidson FXDCI 1450 EFI Dyna Super Glide Custom - 2008, 2009, 2010, 2011, 10313
Harley-Davidson FXDI 1450 EFI Dyna Super Glide - 2008, 2009, 2010, 2011, 10314
Harley-Davidson FXDL 1450 Dyna Low Rider - 2008, 2009, 2010, 2011, 10315
Harley-Davidson FXDL 1450 Dyna Low Rider - 2008, 2009, 2010, 2011, 10316
Harley-Davidson FXDLI 1450 EFI Dyna Low Rider - 2008, 2009, 2010, 2011, 10317
Harley-Davidson FXDWG 1450 Dyna Wide Glide - 2008, 2009, 2010, 2011, 10318
Harley-Davidson FXDWG 1450 Dyna Wide Glide - 2008, 2009, 2010, 2011, 10319
Harley-Davidson FXDWG2 1450 Dyna Wide Glide Limited Edition - 2008, 2009, 2010, 2011, 10320
Harley-Davidson FXDWG3 1450 Dyna Wide Glide Limited Edition - 2008, 2009, 2010, 2011, 10321
Harley-Davidson FXDWGI 1450 EFI Dyna Wide Glide - 2008, 2009, 2010, 2011, 10322
Harley-Davidson FXDX 1450 Dyna Super Glide Sport - 2008, 2009, 2010, 2011, 10323
Harley-Davidson FXDXI 1450 EFI Dyna Super Glide Sport - 2008, 2009, 2010, 2011, 10324
Harley-Davidson FXDXT 1450 Dyna Super Glide T-Sport - 2008, 2009, 2010, 2011, 10325
Harley-Davidson FXST 1450 Softail - 2008, 2009, 2010, 2011, 10326
Harley-Davidson FXSTB 1450 Softail Night Train - 2008, 2009, 2010, 2011, 10327
Harley-Davidson FXSTBI 1450 EFI Softail Night Train - 2008, 2009, 2010, 2011, 10328
Harley-Davidson FXSTD 1450 Softail Deuce - 2008, 2009, 2010, 2011, 10329
Harley-Davidson FXSTDI 1450 EFI Softail Deuce - 2008, 2009, 2010, 2011, 10330
Harley-Davidson FXSTI 1450 EFI Softail - 2008, 2009, 2010, 2011, 10331
Harley-Davidson FXSTS 1450 Softail Springer - 2008, 2009, 2010, 2011, 10332
Harley-Davidson FXSTSI 1450 EFI Softail Springer - 2008, 2009, 2010, 2011, 10333
