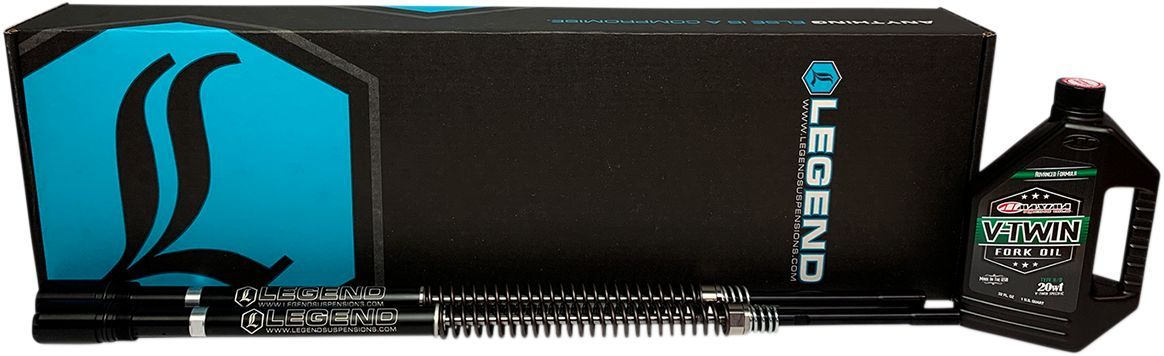

Legend Suspension AXEO39TS High-Performance Front Suspension System #0414-0591
- Description
- Details
- Fitment
-
Innovative through shaft design is first of its kind in front fork application, not like others offering spring drop in or nitrogen
Easily installs in few simple steps
Includes TWO mono-tube, damper cartridges
Unique through-shaft technology so there is no pressure at end of stroke
Utilizes a two-stage management system controlling fluid flow and high pressure
Compression and rebound flow rate is managed via high-flow damper piston and deflective disc set
Secondary high pressure control system, using precision load rated wave springs, allowing spike over pressure to bypass, protecting the deflective disc’s precision valve opening limits
Through shaft eliminates the rod pressure in-and-out issues plus piston rod is always in fluid
Two precision linear bearings support both sides of the rod and piston assembly
Proprietary performance main spring
Machined 303 stainless threaded preload adjuster
Increased pre-load range allows fine tuning for various riding styles and weights
5†of travel
Ride quality is smooth and controlled
Improves stability, cornering and traction
Eliminates front-end dive during aggressive braking and manoeuvring
Firm feel for high-speed sweeping turns
Eliminates bottoming out on large bumps or potholes
Reduces dragging pegs
Designed for optimum performance with Legend rear suspension system
Includes Maxima Racing Oil in cartridge and quart bottle
Maintains stock hydraulic bump stop
Lifetime Warranty
Made by hand in Sturgis, SD USARequires use of stock fork tubes -
Type : Fork
Style : For Stock Fork Tubes
For Fork Tube Diameter : 39,00 mm (1,54")
Product Name : Cartridge
Units : Each -
Harley-Davidson FXR 1340 Super Glide 1989
Harley-Davidson FXR 1340 Super Glide 1991
Harley-Davidson FXR 1340 Super Glide 1990
Harley-Davidson FXR 1340 Super Glide 1992
Harley-Davidson FXR 1340 Super Glide 1994
Harley-Davidson FXR 1340 Super Glide 1993
Harley-Davidson FXR 1340 Super Glide 1988
Harley-Davidson FXRS 1340 Low Rider 1988
Harley-Davidson FXRS 1340 Low Rider 1992
Harley-Davidson FXRS 1340 Low Rider 1991
Harley-Davidson FXRS 1340 Low Rider 1990
Harley-Davidson FXRS 1340 Low Rider 1989
Harley-Davidson FXRS CON. 1340 Low Rider Convertible 1990
Harley-Davidson FXRS CON. 1340 Low Rider Convertible 1991
Harley-Davidson FXRS CON. 1340 Low Rider Convertible 1992
Harley-Davidson FXRS CON. 1340 Low Rider Convertible 1993
Harley-Davidson FXRS CON. 1340 Low Rider Convertible 1989
Harley-Davidson FXRS-SP 1340 Low Rider Sport Edition (Fxrsl) 1989
Harley-Davidson FXRS-SP 1340 Low Rider Sport Edition (Fxrsl) 1990
Harley-Davidson FXRS-SP 1340 Low Rider Sport Edition (Fxrsl) 1993
Harley-Davidson FXRS-SP 1340 Low Rider Sport Edition (Fxrsl) 1988
Harley-Davidson FXRS-SP 1340 Low Rider Sport Edition (Fxrsl) 1991
Harley-Davidson FXRS-SP 1340 Low Rider Sport Edition (Fxrsl) 1992
Harley-Davidson XL 883 Sportster 1989
Harley-Davidson XL 883 Sportster 1988
Harley-Davidson XL 883 Sportster 1990
Harley-Davidson XLH 1200 Sportster 1988
Harley-Davidson XLH 1200 Sportster 1990
Harley-Davidson XLH 1200 Sportster 1989
Harley-Davidson XLH 883 Sportster 1990
Harley-Davidson XLH 883 Sportster Deluxe 1989
Harley-Davidson XLH 883 Sportster Deluxe 1990
Harley-Davidson XLH 883 Sportster Deluxe 1988
Harley-Davidson XLH 883 Sportster Hugger 1988
Harley-Davidson XLH 883 Sportster Hugger 1990
Harley-Davidson XLH 883 Sportster Hugger 1989
