Description

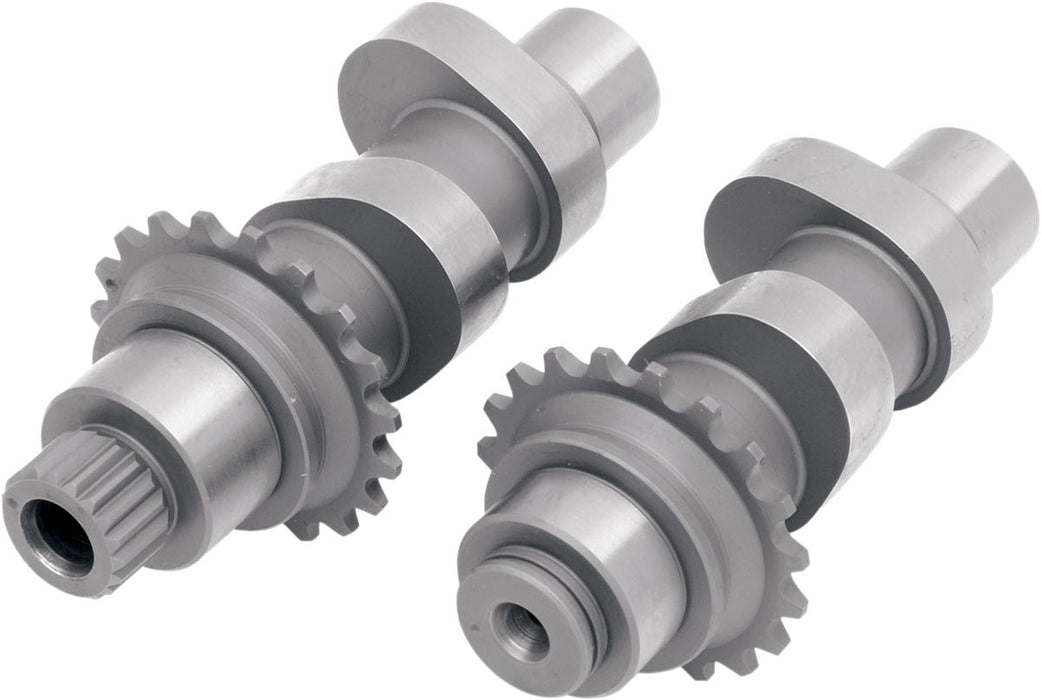

Chain Driven CamAllow you to upgrade your 99-06 Twin Cam (except 06 Dyna Glide) to the newer roller-style cam chains and replaces the spring tension cam chain adjusters with the later-style hydraulic adjusters for longer life
Cam grinds listed are designed to be used with stock lifters; they require the installation of a 07-17 cam plate, oil pump, cam sprockets and chains, and both hydraulic chain adjusters (these parts are not included and must be purchased separately)
A list of required components is supplied with each set of cams
Performance should be similar to earlier bikes with the same cam grinds
Made in the U.S.A.
99-06 Twin Cam motors (except 06 Dyna Glide) cannot use the 07-17 cams, as the bearing journal on the earlier motors is .875" in diameter and the 07-17 cams are 1.000" in diameter. The "N" series of cams feature the .875" bearing journal, yet still accept the new style cam support plate
99-01 model motors must use the Andrews rear cam sprocket Drag part #0925-0147. 2002-2006 models must use the stock rear cam sprocket, OEM #25728-06
Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearanceBolt-in cams for 88" or 95" motors Smooth idle, broad torque band Run best with low-restriction
Details
Units : PairIntake Lobe Centreline : 100°
Exhaust Close Imperial : 14°
Exhaust Lobe Centreline : 106°
Features : Can Be Used with Stock Springs and Tappets
Intake Close : 48°
Intake Close Imperial : 48°
Intake Lift : 0,510"
Exhaust Lift Imperial : 0.510"
Product Name : Cam Kit
Exhaust Lift : 0,510"
Exhaust Lift at TDC : 0,148"
Intake Duration : 240°
Intake Duration Imperial : 240°
Intake Lift at TDC : 0,174"
Intake Open : 18°
Exhaust Open : 46°
Exhaust Duration Imperial : 236°
Exhaust Lift at TDC Imperial : 0.148"
Exhaust Lobe Centreline Imperial : 106°
Intake Lift Imperial : 0.510"
Exhaust Duration : 236°
Exhaust Close : 14°
Intake Open Imperial : 18°
Type : Chain
Exhaust Open Imperial : 46°
Application : Exhaust| Intake
Intake Lobe Centreline Imperial : 100°
Grind : 37 Series
Intake Lift at TDC Imperial : 0.174"
Fitment
Harley-Davidson FLHR 1450 Road King - 2008, 2009, 2010, 2011, 3475Harley-Davidson FLHR 1450 Road King - 2008, 2009, 2010, 2011, 3476
Harley-Davidson FLHRCI 1450 EFI Road King Classic - 2008, 2009, 2010, 2011, 3477
Harley-Davidson FLHRCI 1450 EFI Road King Classic - 2008, 2009, 2010, 2011, 3478
Harley-Davidson FLHRI 1450 EFI Road King - 2008, 2009, 2010, 2011, 3479
Harley-Davidson FLHRSEI 1550 Road King Screamin Eagle - 2008, 2009, 2010, 2011, 3480
Harley-Davidson FLHRSEI2 1690 Road King Screamin Eagle - 2008, 2009, 2010, 2011, 3481
Harley-Davidson FLHRSI 1450 EFI Road King Custom - 2008, 2009, 2010, 2011, 3482
Harley-Davidson FLHT 1450 Electra Glide - 2008, 2009, 2010, 2011, 3483
Harley-Davidson FLHT 1450 Electra Glide - 2008, 2009, 2010, 2011, 3484
Harley-Davidson FLHTC 1450 Electra Glide Classic - 2008, 2009, 2010, 2011, 3485
Harley-Davidson FLHTCI 1450 EFI Electra Glide Classic - 2008, 2009, 2010, 2011, 3486
Harley-Davidson FLHTCSE2 1690 EFI Electra Glide Screamin Eagle - 2008, 2009, 2010, 2011, 3487
Harley-Davidson FLHTCUI 1450 EFI Electra Glide Ultra Classic - 2008, 2009, 2010, 2011, 3488
Harley-Davidson FLHTCUI 1450 EFI Electra Glide Ultra Classic - 2008, 2009, 2010, 2011, 3489
Harley-Davidson FLHTCUSE 1690 Electra Glide Ultra Classic Screamin Eagle - 2008, 2009, 2010, 2011, 3490
Harley-Davidson FLHTI 1450 EFI Electra Glide - 2008, 2009, 2010, 2011, 3491
Harley-Davidson FLHXI 1450 EFI Street Glide - 2008, 2009, 2010, 2011, 3492
Harley-Davidson FLSTC 1450 Heritage Softail Classic - 2008, 2009, 2010, 2011, 3493
Harley-Davidson FLSTCI 1450 EFI Heritage Softail Classic - 2008, 2009, 2010, 2011, 3494
Harley-Davidson FLSTF 1450 Fat Boy - 2008, 2009, 2010, 2011, 3495
Harley-Davidson FLSTFI 1450 EFI Fat Boy - 2008, 2009, 2010, 2011, 3496
Harley-Davidson FLSTFI 1550 EFI Fat Boy 15th Anniversary - 2008, 2009, 2010, 2011, 3497
Harley-Davidson FLSTFSE 1690 Fat Boy Screamin Eagle - 2008, 2009, 2010, 2011, 3498
Harley-Davidson FLSTFSE2 1690 Fat Boy Screamin Eagle - 2008, 2009, 2010, 2011, 3499
Harley-Davidson FLSTI 1450 EFI Heritage Softail - 2008, 2009, 2010, 2011, 3500
Harley-Davidson FLSTNI 1450 EFI Softail Deluxe - 2008, 2009, 2010, 2011, 3501
Harley-Davidson FLSTS 1450 Heritage Softail Springer - 2008, 2009, 2010, 2011, 3502
Harley-Davidson FLSTSC 1450 Softail Springer Classic - 2008, 2009, 2010, 2011, 3503
Harley-Davidson FLSTSCI 1450 EFI Softail Springer Classic - 2008, 2009, 2010, 2011, 3504
Harley-Davidson FLTRSEI 1550 Road Glide Screamin Eagle - 2008, 2009, 2010, 2011, 3505
Harley-Davidson FXD 1450 Dyna Super Glide - 2008, 2009, 2010, 2011, 3506
Harley-Davidson FXD 1450 Dyna Super Glide - 2008, 2009, 2010, 2011, 3507
Harley-Davidson FXDCI 1450 EFI Dyna Super Glide Custom - 2008, 2009, 2010, 2011, 3508
Harley-Davidson FXDI 1450 EFI Dyna Super Glide - 2008, 2009, 2010, 2011, 3509
Harley-Davidson FXDL 1450 Dyna Low Rider - 2008, 2009, 2010, 2011, 3510
Harley-Davidson FXDL 1450 Dyna Low Rider - 2008, 2009, 2010, 2011, 3511
Harley-Davidson FXDLI 1450 EFI Dyna Low Rider - 2008, 2009, 2010, 2011, 3512
Harley-Davidson FXDWG 1450 Dyna Wide Glide - 2008, 2009, 2010, 2011, 3513
Harley-Davidson FXDWG 1450 Dyna Wide Glide - 2008, 2009, 2010, 2011, 3514
Harley-Davidson FXDWG2 1450 Dyna Wide Glide Limited Edition - 2008, 2009, 2010, 2011, 3515
Harley-Davidson FXDWG3 1450 Dyna Wide Glide Limited Edition - 2008, 2009, 2010, 2011, 3516
Harley-Davidson FXDWGI 1450 EFI Dyna Wide Glide - 2008, 2009, 2010, 2011, 3517
Harley-Davidson FXDX 1450 Dyna Super Glide Sport - 2008, 2009, 2010, 2011, 3518
Harley-Davidson FXDXI 1450 EFI Dyna Super Glide Sport - 2008, 2009, 2010, 2011, 3519
Harley-Davidson FXDXT 1450 Dyna Super Glide T-Sport - 2008, 2009, 2010, 2011, 3520
Harley-Davidson FXST 1450 Softail - 2008, 2009, 2010, 2011, 3521
Harley-Davidson FXSTB 1450 Softail Night Train - 2008, 2009, 2010, 2011, 3522
Harley-Davidson FXSTBI 1450 EFI Softail Night Train - 2008, 2009, 2010, 2011, 3523
Harley-Davidson FXSTD 1450 Softail Deuce - 2008, 2009, 2010, 2011, 3524
Harley-Davidson FXSTDI 1450 EFI Softail Deuce - 2008, 2009, 2010, 2011, 3525
Harley-Davidson FXSTI 1450 EFI Softail - 2008, 2009, 2010, 2011, 3526
Harley-Davidson FXSTS 1450 Softail Springer - 2008, 2009, 2010, 2011, 3527
Harley-Davidson FXSTSI 1450 EFI Softail Springer - 2008, 2009, 2010, 2011, 3528
