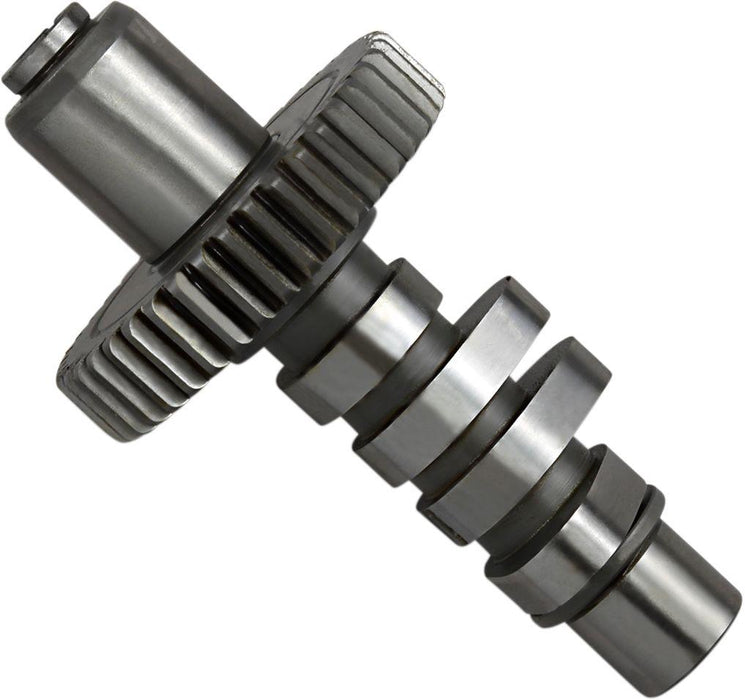

Andrews Low-Compression Cam #212350

Description

Low-Compression Cam

Designed with a combination of shorter durations and higher lifts to offer the advantages of a broad torque output through the entire rpm range

Designed for hydraulics, but could be run with solids

Grind #1 is the low-compression version of an "A" grind cam for 74" and 80" models

Made in the U.S.A.

On late 77 and later engines, the pitch diameter on the camshaft, pinion gear and breather valve gear was changed. These components are not interchangeable with earlier style components unless replaced in sets only. Late 77 and later gear sets are identified by a circular groove machined in the outer face of the cam gear.

Grind #2 offers more power through the rpm range for engines with low-compression pistons; the low-compression sister to a "B" grind cam

Details

Exhaust Lift at TDC Imperial : Shovel: 0.133" Pan: 0.133"
Exhaust Open : 35°
Product Name : Cam
Exhaust Close : 15°
Intake Open : 15°
Application : Exhaust| Intake
Intake Close Imperial : 35°
Grind : #2
Intake Lift : Shovel: 0,490" Pan: 0,512"
Intake Lift Imperial : Shovel: 0.490" Pan: 0.512
Intake Lift at TDC Imperial : Shovel: 0.133" Pan: 0.133"
Intake Lift at TDC : Shovel: 0,133" Pan: 0,133"
Exhaust Lift at TDC : Shovel: 0,133" Pan: 0,133"
Intake Duration Imperial : 230°
Intake Open Imperial : 15°
Exhaust Close Imperial : 15°
Units : Each
Intake Close : 35°
Exhaust Lift Imperial : Shovel: 0.490" Pan: 0.512"
Exhaust Duration : 230°
Exhaust Lift : Shovel: 0,490" Pan: 0,512"
Exhaust Open Imperial : 35°
Intake Duration : 230°
Exhaust Duration Imperial : 230°

Fitment

Harley Davidson FLH 1200 Electra Glide - 1978, 1979, 1980
Harley Davidson FLH 1340 Electra Glide - 1979, 1980, 1981, 1982, 1983
Harley Davidson FLH 1340 Electra Glide Belt Drive - 1984
Harley Davidson FLHC Electra Glide Classic - 1979
Harley Davidson FLHC 1340 Electra Glide - 1980
Harley Davidson FLHC 1340 Electra Glide Classic - 1981, 1982, 1983
Harley Davidson FLHT 1340 Electra Glide - 1983, 1984
Harley Davidson FLHTE 1340 Electra Glide Classic - 1984
Harley Davidson FLT 1340 Tour Glide - 1980, 1981, 1982, 1983
Harley Davidson FLTC 1340 Tour Glide Classic - 1980, 1981, 1982, 1983, 1984
Harley Davidson FX 1200 Super Glide - 1978, 1979
Harley Davidson FXB 1340 Sturgis - 1980, 1981, 1982
Harley Davidson FXE 1200 Super Glide - 1978, 1979, 1980
Harley Davidson FXE 1340 Super Glide - 1981, 1982, 1983, 1984
Harley Davidson FXEF 1200 Fat Bob - 1979
Harley Davidson FXEF 1340 Fat Bob - 1979, 1980, 1981, 1982
Harley Davidson FXR 1340 II Super Glide II - 1982, 1983, 1984
Harley Davidson FXRDG 1340 Disc Glide - 1984
Harley Davidson FXRS 1340 Low Glide - 1984
Harley Davidson FXRS 1340 II Super Glide II - 1982
Harley Davidson FXRT 1340 Sport Glide - 1984
Harley Davidson FXS 1200 Low Rider - 1978, 1979
Harley Davidson FXS 1340 Low Rider - 1979, 1980, 1981, 1982, 1983
Harley Davidson FXSB 1340 Low Rider - 1984
Harley Davidson FXWG 1340 Wide Glide - 1980, 1981, 1982, 1983, 1984
