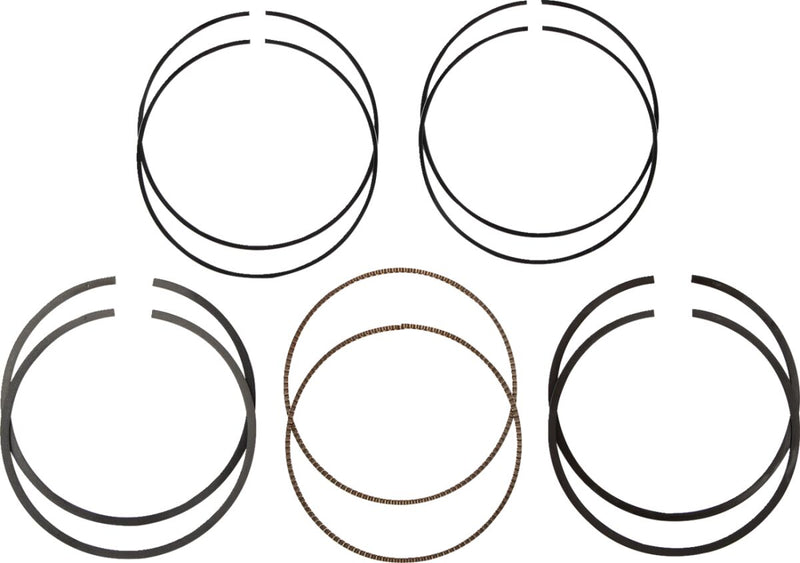

Hastings Replacement Piston Rings - Set for Harley-Davidson Touring, Softail, Dyna & Trike 2017-2024
Description
Replacement Piston Rings
- Includes top compression rings, second compression rings, and oil control rings
- Top compression rings are Barrel Face
- Coated using PVD (Physical Vapor Deposition) process
- Helps in the the heat transfer process between the piston and cylinder wall
- Controls combustion chamber gases allowing the piston to transfer the energy of the expanding combustion gases, to the crankshaft
- Second compression rings are Napier
- Reverse twist ring along with a taper-machined ring face duplicates the OD bottom side scraping edge of a positive twist torsional ring
- Promotes side sealing that prevents oil from being forced under and behind the ring resulting in better oil economy
- Oil control rings are Three Piece Flex Vent
- Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore
- Provides uniform pressure through four steel rails and two expanders assuring positive oil control
- Made in the USA
- Includes enough rings for two pistons.
- Two rings per groove, except for the rails that will be two rail rings per one expander ring.
Kit Includes:• 2x Top Compression Rings• 2x Second Compression Rings• 2x Expander Rings• 4x Steel Rails
Fitment
- 2018-2024 Harley Davidson FLFBS 1868 ABS Softail Fat Boy 114
- 2018 Harley Davidson FLFBS 1868 ABS Softail Fat Boy Anniversary (ANV) 114
- 2018 Harley Davidson FLFBS 1868 ABS Softail Fat Boy Anniversary (ANX) 114
- 2021 Harley Davidson FLH 1868 ABS Electra Glide Revival 114
- 2018-2024 Harley Davidson FLHCS 1868 ABS Softail Heritage Classic 114
- 2019-2024 Harley Davidson FLHRXS 1868 ABS Road King Special 114
- 2019 Harley Davidson FLHTCUTG 1750 ABS Tri Glide Ultra 107
- 2020-2024 Harley Davidson FLHTCUTG 1868 ABS Tri Glide Ultra 114
- 2019-2024 Harley Davidson FLHTK 1868 ABS Glide Ultra Limited 114
- 2023 Harley Davidson FLHTK 1868 ABS Ultra Limited Anniversary 114
- 2019 Harley Davidson FLHTKL 1868 ABS Ultra Limited Low 114
- 2017 Harley Davidson FLHTKSE 1868 ABS Electra Glide Ultra Limited CVO 114
- 2018-2021 Harley Davidson FLHTKSE 1923 ABS Ultra Limited CVO 117
- 2018 Harley Davidson FLHTKSE 1923 ABS Ultra Limited CVO Anniversary 117
- 2019-2023 Harley Davidson FLHXS 1868 ABS Street Glide Special 114
- 2021 Harley Davidson FLHXS 1868 ABS Street Glide Special 114 Arctic Blast Limited
- 2023 Harley Davidson FLHXS 1868 ABS Street Glide Special Anniversary 114
- 2017 Harley Davidson FLHXSE 1868 ABS Street Glide CVO 114
- 2018-2022 Harley Davidson FLHXSE 1923 ABS Street Glide CVO 117
- 2023-2024 Harley Davidson FLHXSE 1977 ABS Street Glide CVO 121
- 2019 Harley Davidson FLRT 1750 ABS Freewheeler 107
- 2020-2024 Harley Davidson FLRT 1868 ABS Freewheeler 114
- 2020-2024 Harley Davidson FLTRK 1868 ABS Road Glide Limited 114
- 2019 Harley Davidson FLTRU 1868 ABS Road Glide Ultra 114
- 2019-2023 Harley Davidson FLTRXS 1868 ABS Road Glide Special 114
- 2023 Harley Davidson FLTRXS 1868 ABS Road Glide Special Anniversary 114
- 2021-2024 Harley Davidson FXBBS 1868 ABS Softail Street Bob 114
- 2021 Harley Davidson FXBBS 1868 Softail Street Bob 114
- 2018-2020 Harley Davidson FXBRS 1868 ABS Softail Breakout 114
- 2018 Harley Davidson FXBRS 1868 ABS Softail Breakout Anniversary (ANX) 114
- 2019 Harley Davidson FXDR 1868 ABS Softail King 114
- 2020 Harley Davidson FXDRS 1868 ABS Softail King 114
- 2018-2021, 2023 Harley Davidson FXFBS 1868 ABS Softail Fat Bob 114
- 2020-2021 Harley Davidson FXLRS 1868 ABS Softail Low Rider S 114
- 2022-2024 Harley Davidson FXLRS 1923 ABS Softail Low Rider S 117
Part Numbers
Item Number: 09120963
Vendor Part Number: WG2270434|2C523213
Barcode Number: WG2270434|2C523213
