Andrews Grind Cam #288167G

Andrews Grind Cam #288167G

by Andrews
Currently unavailable
£440.94
SKU 09250181

Description

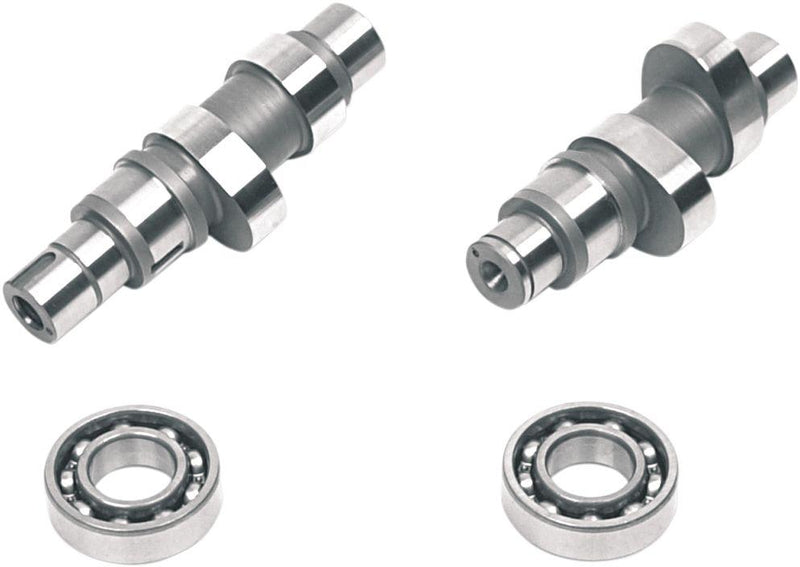

Grind Cam
  • Cams work well with fuel injection or carburetor models
  • Run best with low restriction exhausts (1700-5200 rpm)
  • Works well with carbs or fuel injection
  • Bolt-in cam for more torque with stock compression
  • Can be used with stock valve springs and tappets
  • Similar to the EV-23 cam
  • All Andrews gear-driven cams require four-gear set for installation (DS-199532 for 99-06 applications; 0925-0166 or 0925-0152 for 07-17 Twin Cam and 06 Dyna applications).
  • Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
  • 59G, 60G and 64G cams are for highly tuned engines and require the knowledge of an expert engine builder for proper setup and installation.
    • Hi-lift Performance cam for 95-107 inches, 10.0 to 10.8 compression ratio with high-flow head setup (2600-6400+ RPM)

    Details

    Exhaust Lift : 0,570"
    Exhaust Lift at TDC : 0,187"
    Exhaust Lobe Centreline : 108°
    Exhaust Lobe Centreline Imperial : 108°
    Exhaust Open Imperial : 58°
    Type : Gear
    Application : Exhaust| Intake
    Intake Lobe Centreline Imperial : 102°
    Intake Duration : 252°
    Intake Lift Imperial : 0.570"
    Exhaust Lift at TDC Imperial : 0.187"
    Units : Pair
    Exhaust Duration Imperial : 260°
    Exhaust Open : 58°
    Intake Close : 48°
    Intake Lift : 0,570"
    Exhaust Close Imperial : 22°
    Exhaust Duration : 260°
    Intake Lift at TDC : 0,209"
    Exhaust Lift Imperial : 0.570"
    Product Name : Cam Kit
    Grind : 67 Series
    Intake Duration Imperial : 252°
    Intake Open Imperial : 24°
    Intake Close Imperial : 48°
    Exhaust Close : 22°
    Intake Lobe Centreline : 102°
    Intake Open : 24°
    Intake Lift at TDC Imperial : 0.209"

    Fitment

    Harley Davidson FLHR 1450 Road King - 2000, 2001, 2002, 2003
    Harley Davidson FLHR 1450 Road King - 1999
    Harley Davidson FLHRCI 1450 EFI Road King Classic - 2000, 2001, 2002, 2003, 2004, 2005, 2006
    Harley Davidson FLHRCI 1450 EFI Road King Classic - 1999
    Harley Davidson FLHRI 1450 EFI Road King - 2004, 2005, 2006
    Harley Davidson FLHRSEI 1550 Road King Screamin Eagle - 2002
    Harley Davidson FLHRSEI2 1690 Road King Screamin Eagle - 2003
    Harley Davidson FLHRSI 1450 EFI Road King Custom - 2004, 2005, 2006
    Harley Davidson FLHT 1450 Electra Glide - 2000, 2001, 2002, 2003
    Harley Davidson FLHT 1450 Electra Glide - 1999
    Harley Davidson FLHTC 1450 Electra Glide Classic - 2002, 2003, 2004
    Harley Davidson FLHTCI 1450 EFI Electra Glide Classic - 2004
    Harley Davidson FLHTCSE2 1690 EFI Electra Glide Screamin Eagle - 2005
    Harley Davidson FLHTCUI 1450 EFI Electra Glide Ultra Classic - 2001, 2002, 2003, 2004, 2005, 2006
    Harley Davidson FLHTCUI 1450 EFI Electra Glide Ultra Classic - 1999, 2000
    Harley Davidson FLHTCUSE 1690 Electra Glide Ultra Classic Screamin Eagle - 2006
    Harley Davidson FLHTI 1450 EFI Electra Glide - 2004, 2005, 2006
    Harley Davidson FLHXI 1450 EFI Street Glide - 2006
    Harley Davidson FLSTC 1450 Heritage Softail Classic - 2000, 2001, 2002, 2003
    Harley Davidson FLSTCI 1450 EFI Heritage Softail Classic - 2001, 2002, 2003, 2004, 2005, 2006
    Harley Davidson FLSTF 1450 Fat Boy - 2000, 2001, 2002, 2003
    Harley Davidson FLSTFI 1450 EFI Fat Boy - 2001, 2002, 2003, 2004, 2005, 2006
    Harley Davidson FLSTFI 1550 EFI Fat Boy 15th Anniversary - 2005
    Harley Davidson FLSTFSE 1690 Fat Boy Screamin Eagle - 2005
    Harley Davidson FLSTFSE2 1690 Fat Boy Screamin Eagle - 2006
    Harley Davidson FLSTI 1450 EFI Heritage Softail - 2006
    Harley Davidson FLSTNI 1450 EFI Softail Deluxe - 2005, 2006
    Harley Davidson FLSTS 1450 Heritage Softail Springer - 2000, 2001, 2002, 2003
    Harley Davidson FLSTSC 1450 Softail Springer Classic - 2006
    Harley Davidson FLSTSCI 1450 EFI Softail Springer Classic - 2005, 2006
    Harley Davidson FLTRSEI 1550 Road Glide Screamin Eagle - 2000
    Harley Davidson FXD 1450 Dyna Super Glide - 2000, 2001, 2002, 2003
    Harley Davidson FXD 1450 Dyna Super Glide - 1999
    Harley Davidson FXDCI 1450 EFI Dyna Super Glide Custom - 2005
    Harley Davidson FXDI 1450 EFI Dyna Super Glide - 2004
    Harley Davidson FXDL 1450 Dyna Low Rider - 2000, 2001, 2002, 2003, 2004, 2005
    Harley Davidson FXDL 1450 Dyna Low Rider - 1999
    Harley Davidson FXDLI 1450 EFI Dyna Low Rider - 2004, 2005
    Harley Davidson FXDWG 1450 Dyna Wide Glide - 2000, 2001, 2002, 2003
    Harley Davidson FXDWG 1450 Dyna Wide Glide - 1999
    Harley Davidson FXDWG2 1450 Dyna Wide Glide Limited Edition - 2001
    Harley Davidson FXDWG3 1450 Dyna Wide Glide Limited Edition - 2002
    Harley Davidson FXDWGI 1450 EFI Dyna Wide Glide - 2004, 2005
    Harley Davidson FXDX 1450 Dyna Super Glide Sport - 1999, 2000, 2001, 2002, 2003
    Harley Davidson FXDXI 1450 EFI Dyna Super Glide Sport - 2004, 2005
    Harley Davidson FXDXT 1450 Dyna Super Glide T-Sport - 2001, 2002, 2003
    Harley Davidson FXST 1450 Softail - 2000, 2001, 2002, 2003
    Harley Davidson FXSTB 1450 Softail Night Train - 2000, 2001, 2002, 2003
    Harley Davidson FXSTBI 1450 EFI Softail Night Train - 2004, 2005, 2006
    Harley Davidson FXSTD 1450 Softail Deuce - 2000, 2001, 2002, 2003
    Harley Davidson FXSTDI 1450 EFI Softail Deuce - 2001, 2002, 2003, 2004, 2005
    Harley Davidson FXSTI 1450 EFI Softail - 2004, 2005, 2006
    Harley Davidson FXSTS 1450 Softail Springer - 2000, 2001, 2002, 2003
    Harley Davidson FXSTSI 1450 EFI Softail Springer - 2004, 2005
